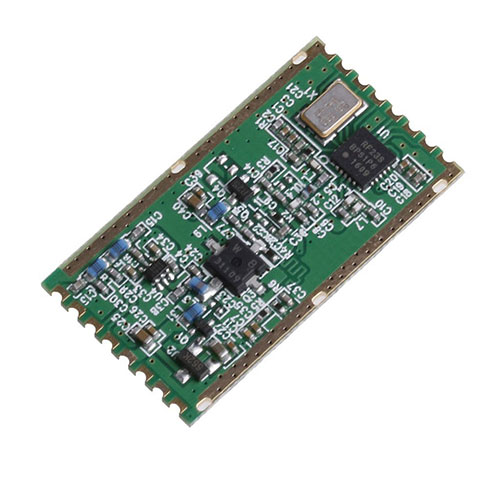

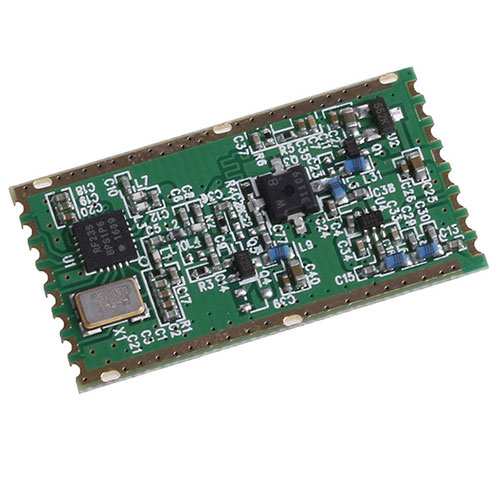

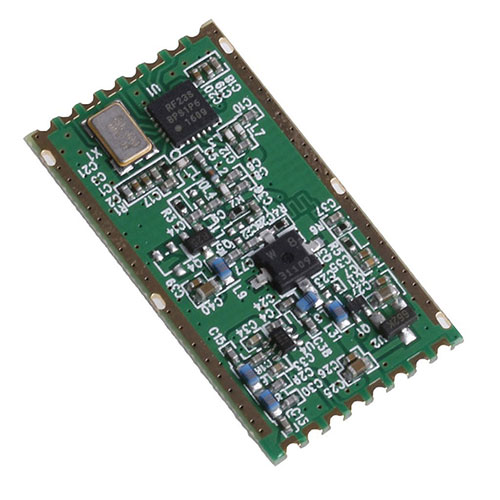

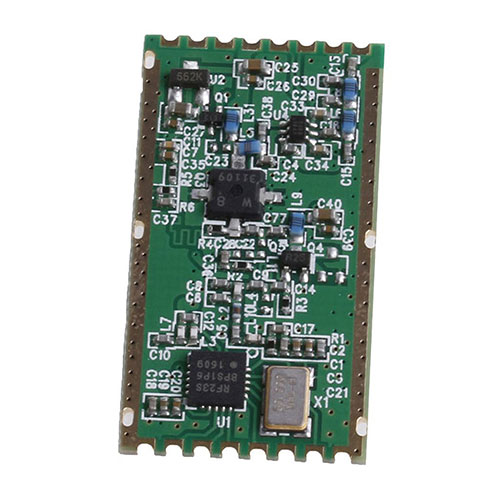

RFM23BP 433MHz Transceiver

Product Features
The RFM23BP is a high-power, highly integrated RF transceiver that operates over a wide frequency range, including the 868 MHz unlicensed ISM band.
Its highly integrated architecture allows for minimal external components while maintaining maximum design flexibility.
All of the major RF communication parameters are programmable, most of which can be set dynamically.
The RFM23BP offers unique advantages of programmable narrowband and wideband communication modes without the need to modify external components.
The RFM23BP is optimized for low power consumption while offering high RF output power and channelization.
product description
description:

The RFM23BP is a high-power, highly integrated RF transceiver that operates over a wide frequency range, including the 868 MHz unlicensed ISM band.

Its highly integrated architecture allows for minimal external components while maintaining maximum design flexibility.

All of the major RF communication parameters are programmable, most of which can be set dynamically.

The RFM23BP offers unique advantages of programmable narrowband and wideband communication modes without the need to modify external components.

The RFM23BP is optimized for low power consumption while offering high RF output power and channelization.

specification:

Material: PCB board

Color: As shown in the picture

Size: approx. 55x40x20mm / 2.17x1.57x0.79inch

Data rate: 0.123 to 256kbps

General ISM <1Ghz Frequency: 433MHz

Power output: 30dBm

Sensitivity: -120dBm

Serial Interface: SPI

Voltage power supply: 1.8V-3.6V

Package includes:

1 wireless transceiver module
