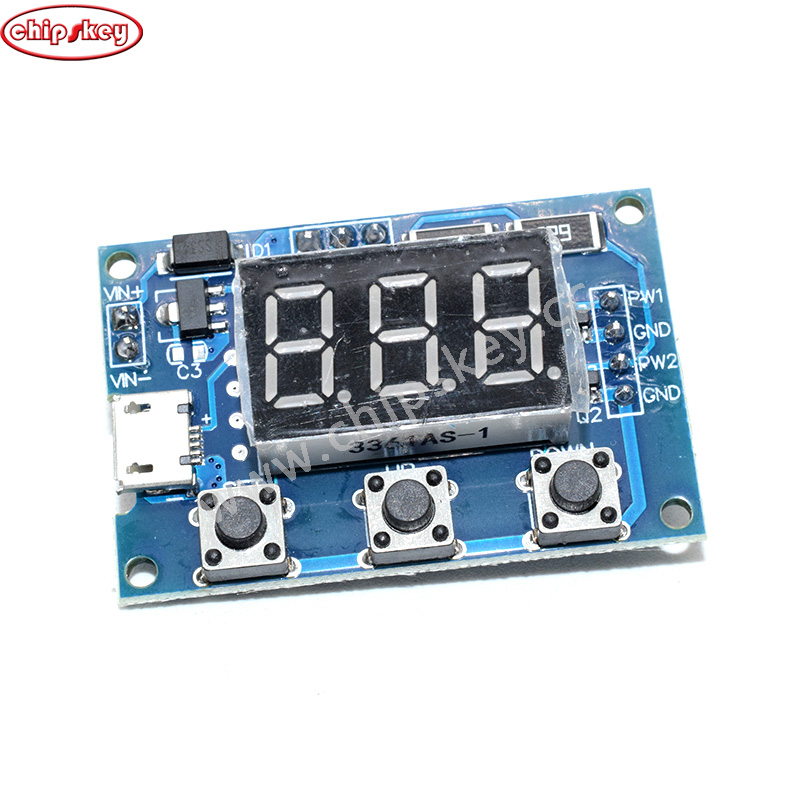

2 Channels PWM Signal Pulse Frequency Cuty Cycle Adjustable

Product Features
Digital square wave generator module supports 1Hz-150KHz frequency and 0% -100% duty cycle, through the onboard instantaneous button to adjust
Dual channel frequency signal and duty cycle complementary output, easier to control
DC5-30V wide voltage input (supports micro USB 5V input), 3-digit LED display, easy to read parameters, serial communication interface, easy to connect and MCU control

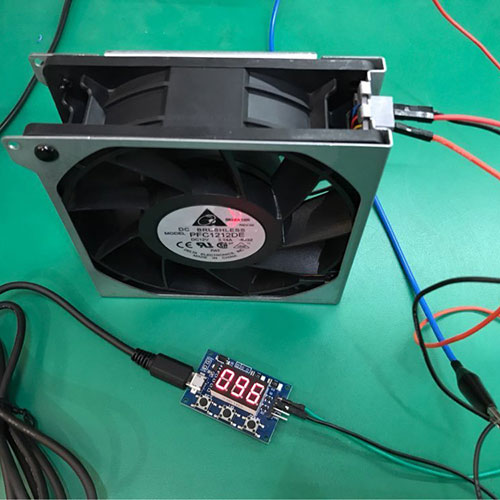

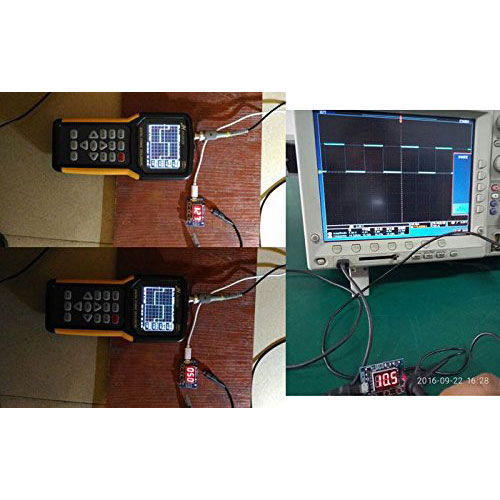

Used as square wave source for instrument testing, driving stepper motor, PWM control motor speed / LED lamp brightness
Fulfillment by Amazon will take 2-4 days for delivery by Icstation Fullfilled It will take 7-17 days for delivery normally

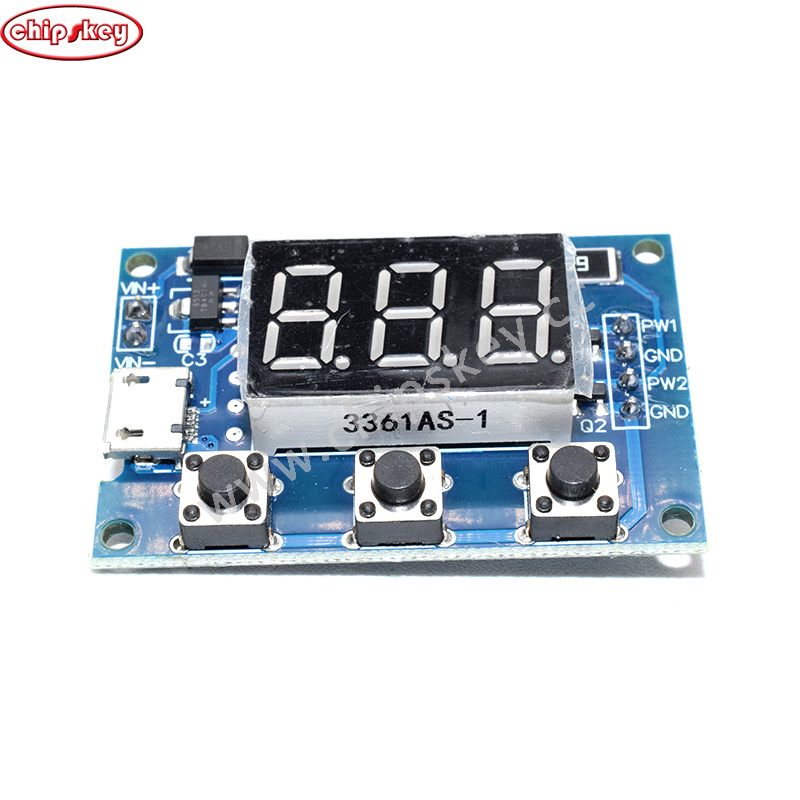

product description
This is a mini digital square wave generator module that supports 1Hz-150KHz frequency and 0% -100% duty cycle adjustment via on-board momentary pushbuttons and supports external communications. DC 5V-30V wide voltage input and dual-channel complementary output, the red LED shows the ideal parameters as a square wave source for instrument testing or drive stepper motor.

Specifications:
Frequency range: 1Hz-150KHz
Duty cycle range: 0% -100%
Accuracy: 2%
Operating voltage: DC 5-30V
Output current: 8-30mA
Output amplitude: 5V V-PP (default is changed by external power supply)
Module Size: 41X29mm / 1.61X1.14 inches (L * W)

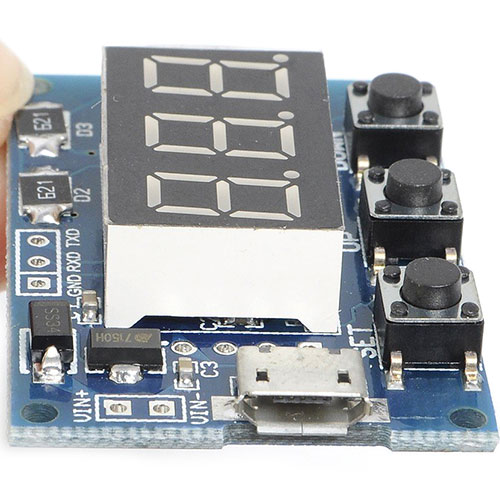

Package includes:
1X digital 2-channel square wave pulse signal generator module 1Hz-150KHz 0% -100%

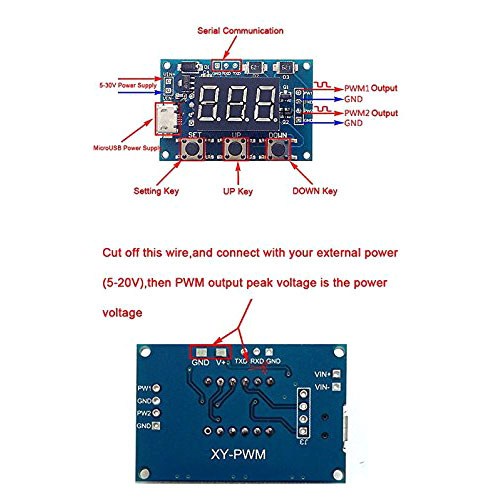

Display Description:
There are 3 display range:
1: XXXX-> Unit 1Hz, range 1Hz-999Hz
2.XX.X-> unit 0.1KHz, range 0.1KHz-99.9KHz
3.XXX-> unit 1KHz, range 1KHz-150KHz,
For example: 100-> 100Hz; 54.1-> 54.1KHz; 1.2.4 .-> 12KHz

Setting Description:
1. Short press "Set" key to switch to display 4 values ??(FR1: PWM1 frequency; dU1: PWM1 duty cycle; FR2: PWM2 frequency; dU2: PWM2 duty cycle)
2. Press "Up" and "Down" to set the current value

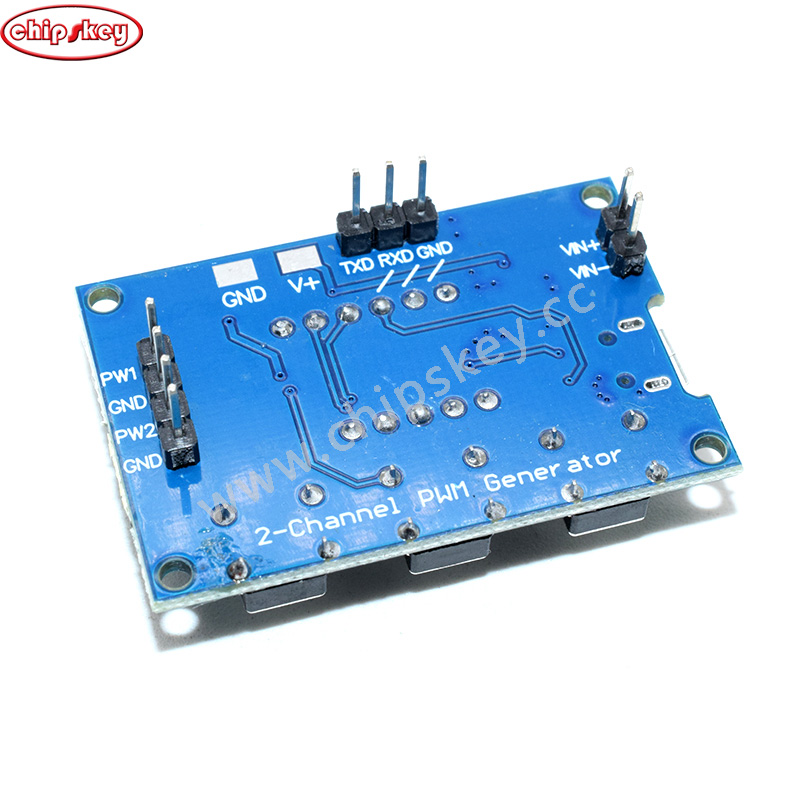

Serial port control:
Baud rate: 9600pbs; Date bit: 8; Stop bit: 1;
1. Set the PWM frequency: "S1FXXXT": set the PWM1 frequency to XXXHZ (0001-999); "S1FXX.XT": set the PWM1 frequency to XXXKHZ (00.1-99.9); "S1FX.XXT": set the PWM1 frequency to XXX KHZ (0.0.1.-1.5.0.) (S1-> PWM1; s2-> PWM2; F-> frequency; D-> duty cycle; T-> stop bit)
2. Set the PWM duty cycle: "S1DXXXT": Set the PWM1 duty cycle XXX (001-100); "S2DXXXT": Set the duty cycle of PWM2 to XXX (001-100)
3.DOWN: set successfully; FALL: setting failed.
