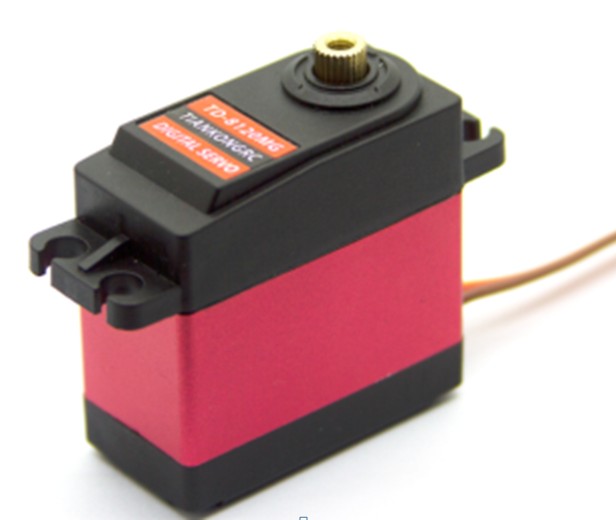

20KG Servo TD8120MG
description
High-performance programmable digital standard servo systems are commonly used in robots, robotic arms, rock climbing cars, and remote-controlled toys.
The main features are fast heat dissipation, high torque, high compatibility sensitivity and adaptation.
A robotic component suitable for use in developing software that is of interest to university professors and students.
Features
- High precision metal gear hard anodizing
- Intermediate CNC aluminum housing
- Waterproof rubber sealing ring screw
Item No. :TD8120MG
Stall torque: ( 5 V ) 18.5 KG / CM 4.3 oz / inch
Stall torque: (6.8 V 21.8 kg / cm 4.3 oz / inch
Dead strap: 3μs
Speed: 0.16 sec / 60 deg (5 V) / 0.14 sec / 60 deg (6.8 V)
Working voltage: 4.8 ~ 6.6 DC voltage
Weight: 65 g
Motor type: DC motor
Equipment type: copper and aluminum
Working frequency: 1520μs / 333 Hz
CE certification: yes
Size: 40 x 20 x 40.5 mm
