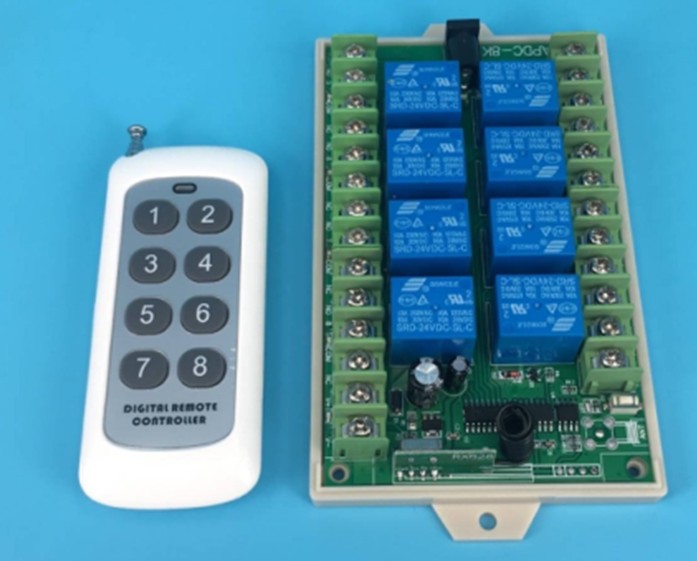

24V 8-channel relay With Controller

First, the way of working



APDC-8K has four working modes: signal self-locking, signal interlocking, signal non-locking, signal self-locking and non-locking coexistence.

1, the signal is self-locking - press the remote control number 1 to learn

2, the signal is not locked - press the remote control number 2 to learn

3, signal interlock - press the remote control 4 button to learn

4, signal 1~4 way self-locking and 5~8 way non-lock coexisting - press the remote control 8th key to learn



 Second, the output method



1, the signal is self-locking: press the remote control number 1 to learn

Press the remote control No. 1 button, the relay corresponding to the No. 1 button is sucked and held, and then press the No. 1 button, the No. 1 relay is disconnected; Press the No. 2 button of the remote control, the No. 2 button corresponds to the relay to attract and hold, and then press No. 2 Key, No. 2 relay is disconnected; 3~8 keys work according to this cycle.

2, the signal is not locked: press the remote control 2 button to learn

Press and hold the remote control No. 1 button, and the relay corresponding to the No. 1 button is pulled in. After the hand is released, the relay is disconnected. Press the No. 2 button, and the relay corresponding to the No. 2 button is pulled in, and then disconnected after releasing the hand; 3~8 buttons Work as usual.

3, signal interlock: press the remote control 4 button to learn

Press the remote control No. 1 button, the corresponding No. 1 relay is sucked and held, press the No. 2 button, the No. 1 relay is disconnected, and the relay corresponding to the No. 2 button is sucked and held; the 3~8 button works according to this cycle.

4, signal 1~4 way self-locking and 2~8 way non-locking coexistence: press the remote control 8th key to learn

Among the 8 relays corresponding to the remote control, 1~4 are self-locking functions, and 5~8 are non-locking functions.



Third, the main technical indicators



1, working voltage: 12VDC (5VDC, 24VDC can be customized)

2, quiescent current: ≤ 7mA

3, working temperature: -20 ° C - +70 ° C

4. Receive sensitivity: ≥-107dBm

5, working frequency: 315MHz to 433MHz

6, control voltage: AC, DC optional

7, the output current: ≤ 5A

8, circuit board size: 120mmx72mmx19mm

9, the shell size: 126mmx80mmx30mm
