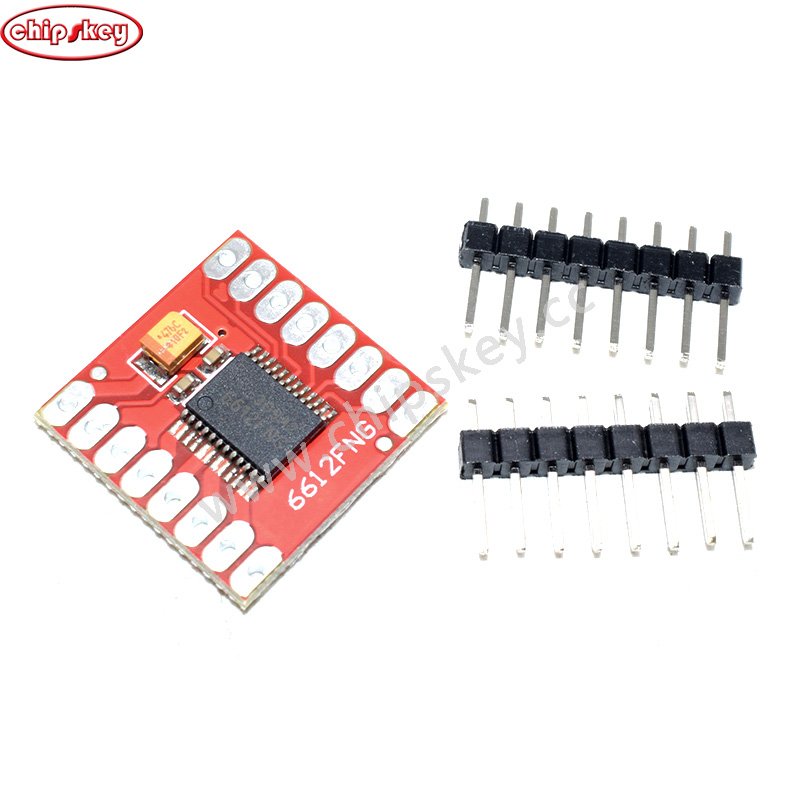

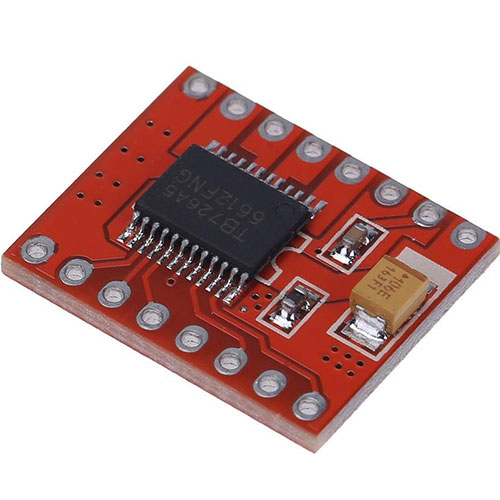

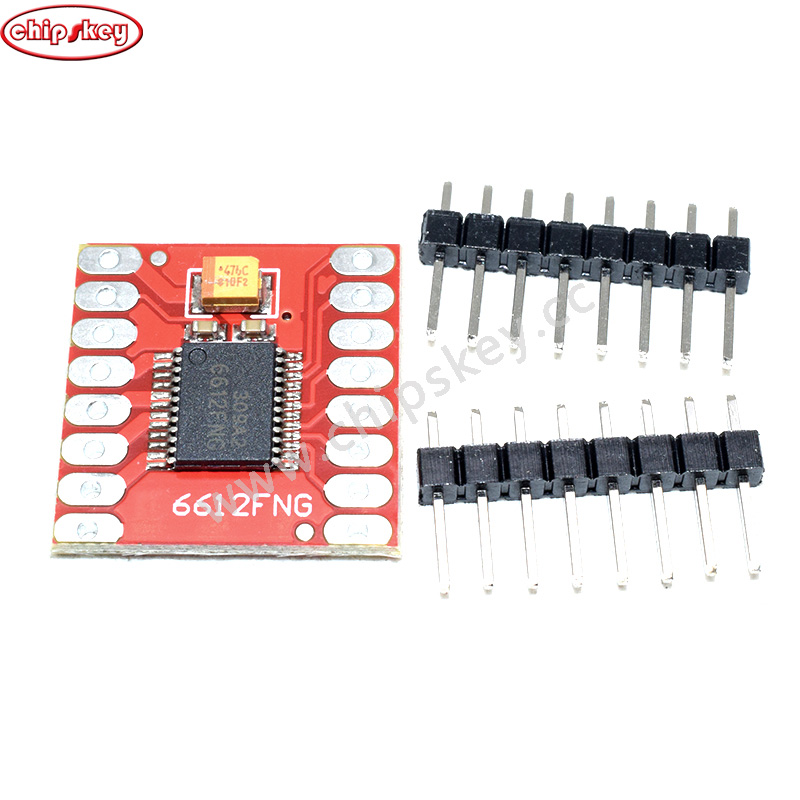

TB6612FNG Stepper Motor Driver

TB6612FNG Stepper Motor Driver

product description
Features: Circuit

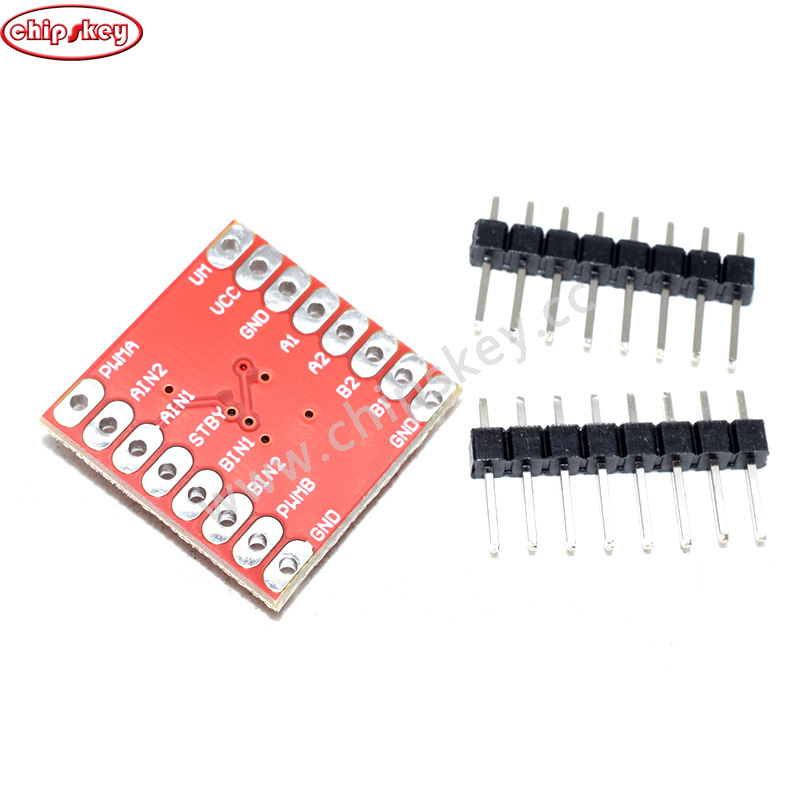

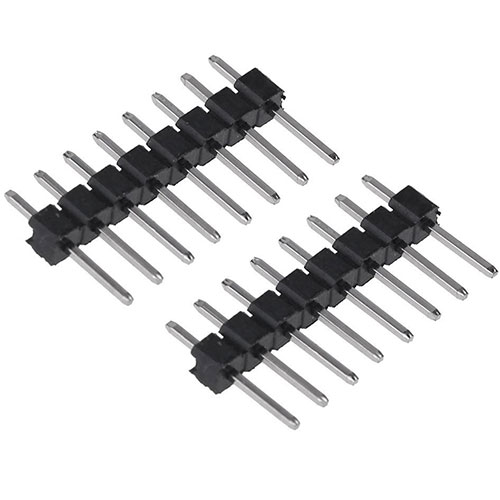

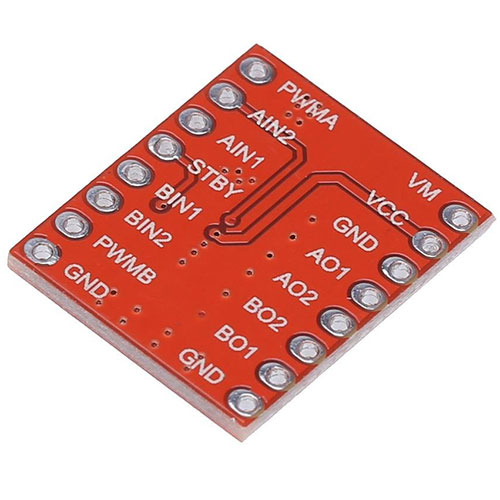

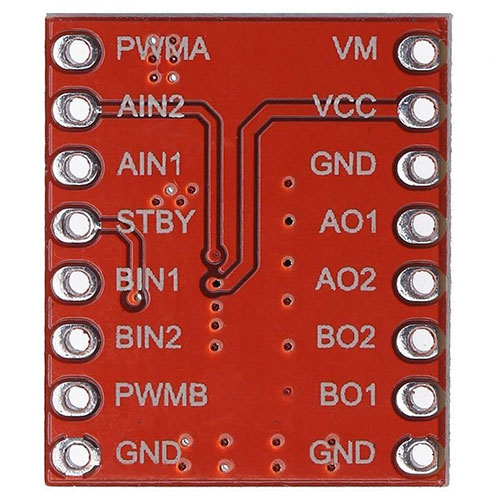

Both power cords contain decoupling capacitors. All pins of the TB6612FNG are split into two 0.1-inch pitch connectors. These pins are arranged on one side with input pins on the other side.
Standby control to save electricity.
CW / CCW / short brake / stop motor control mode.
Built-in thermal shutdown circuit and low voltage detection circuit.
Filter capacitors on both supply lines

specification:
Supply voltage: VCC = 2.7-5.5V for VM = 15V max
Output current: OUT = 1.2A (average) / 3.2A (peak)
Size: about 2 X 2 cm / 0.79 X 0.79 in
