/ 2.8 Inch TFT LCD Shield Touch Display Module For Arduino UNO

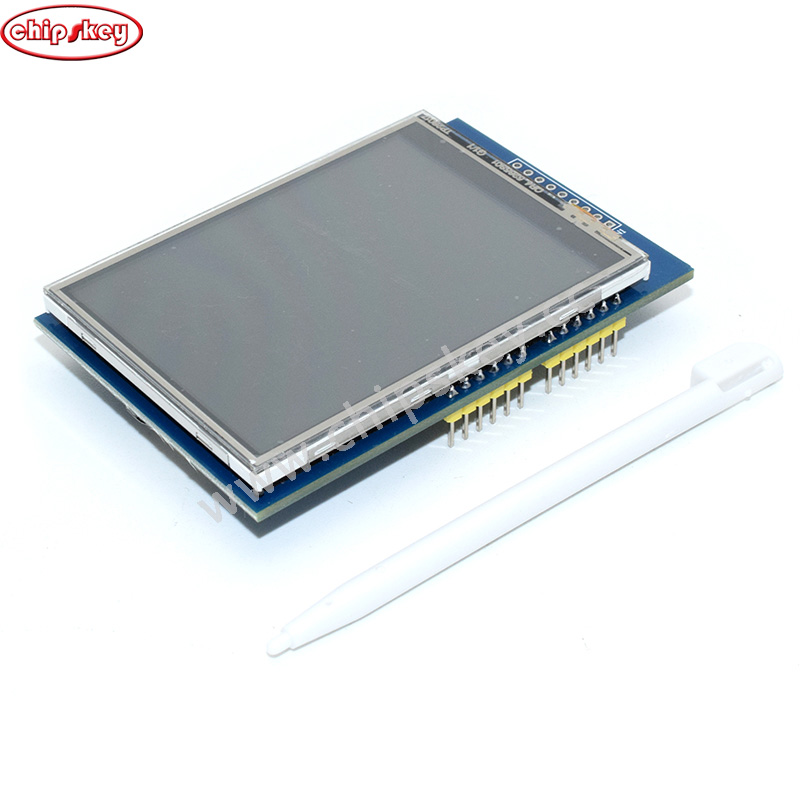

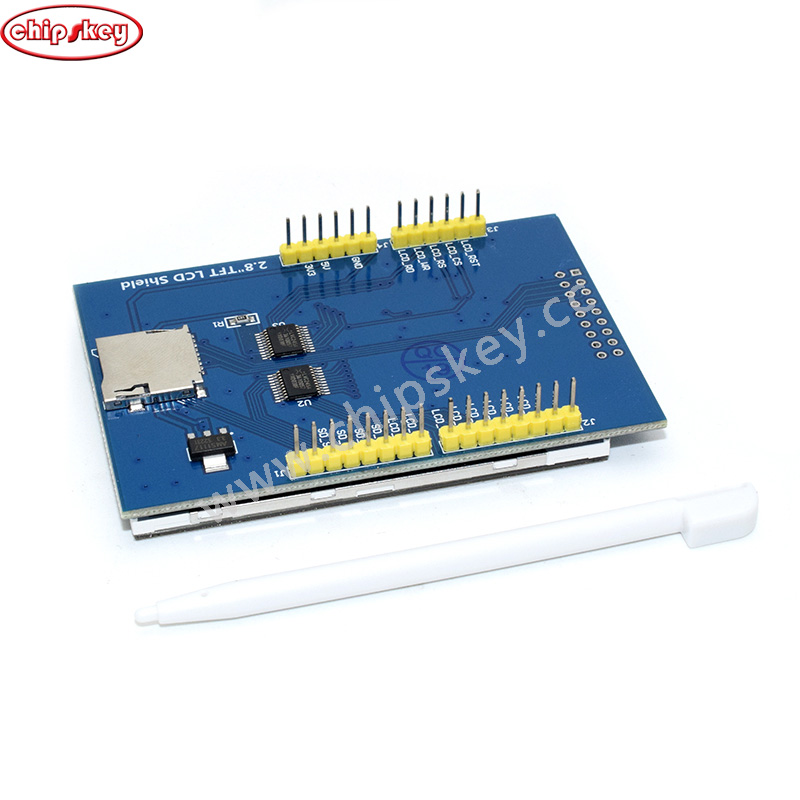

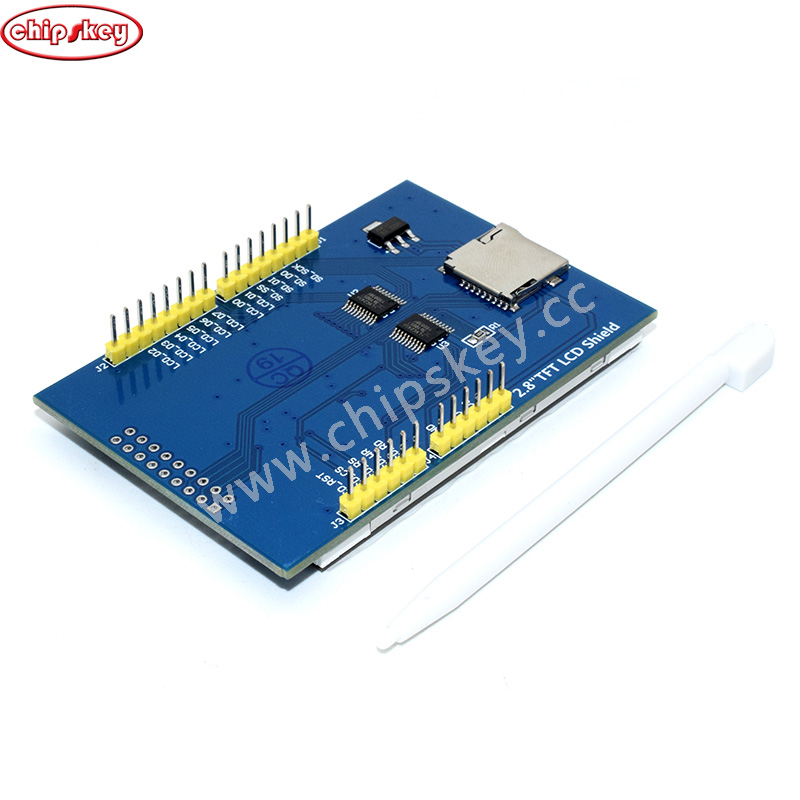

2.8 Inch TFT LCD Shield Touch Display Module For Arduino UNO
SKU:
31054
Shipping Weight:
39.3g
987:viewed
US$5.40
-
+
(9990 Pieces available)
Send Email
Chat Online
Call on Whatsapp
Add to Wishlist
Hot Products
Raspberry Pi 3.5 inch resistive LCD raspberry touch screen display
US$10.92
2.0 inch TFT LCD module color screen SPI serial port only 4 IO ILI9225 driver
US$3.70
2.8Inch TFT SPI Interface ILI9341 Driver
US$7.24
7 inch Raspberry Pi Second Generation LCD Monitor 7inch TFT Monitor with AV Cable and Charger
US$36.19
Description
Customer Reviews
Payment & Shipping
Product Description
Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring
320X240 resolution, clear display, support for touch function
Support 16-bit RGB 65K color display, display rich colors
8-bit parallel bus, faster than serial SPI refresh
On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
Easy to expand the experiment with SD card slot
Provides an Arduino library with a rich sample program
Military-grade process standards, long-term stable work
Provide underlying driver technical support
Product Parameters
Name
Parameter
Display Color
RGB 65K color
SKU
MAR2808
Screen Size
2.8(inch)
Type
TFT
Driver IC
ILI9341
Resolution
320*240 (Pixel)
Module Interface
8-bit parallel interface
Active Area
43.2*57.6(mm)
Module PCB Size
52.70*78.22(mm)
Operating Temperature
-20℃~60℃
Storage Temperature
-30℃~70℃
Operating Voltage
5V/3.3V
Power Consumption
TBD
Product Weight(Package containing)
44(g)
Interface Definition
Number
Pin Label
Pin Description
1
LCD_RST
LCD bus reset signal, low level reset
2
LCD_CS
LCD bus chip select signal, low level enable
3
LCD_RS
LCD bus command / data selection signal,
low level: command, high level: data
4
LCD_WR
LCD bus write signal
5
LCD_RD
LCD bus read signal
6
GND
Power ground
7
5V
5V power input
8
3V3
3.3V power input, this pin can be disconnected
9
LCD_D0
LCD 8-bit data Bit0
10
LCD_D1
LCD 8-bit data Bit1
11
LCD_D2
LCD 8-bit data Bit2
12
LCD_D3
LCD 8-bit data Bit3
13
LCD_D4
LCD 8-bit data Bit4
14
LCD_D5
LCD 8-bit data Bit5
15
LCD_D6
LCD 8-bit data Bit6
16
LCD_D7
LCD 8-bit data Bit7
17
SD_SS
SD card SPI bus chip select signal, low level enable
18
SD_DI
SD card SPI bus MOSI signal
19
SD_DO
SD card SPI bus MISO signal
20
SD_SCK
SD card SPI bus clock signal
