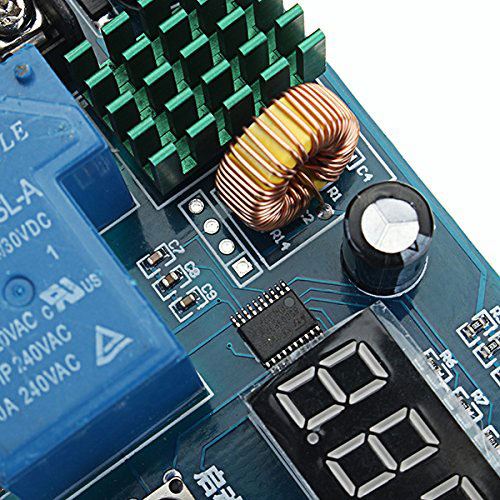

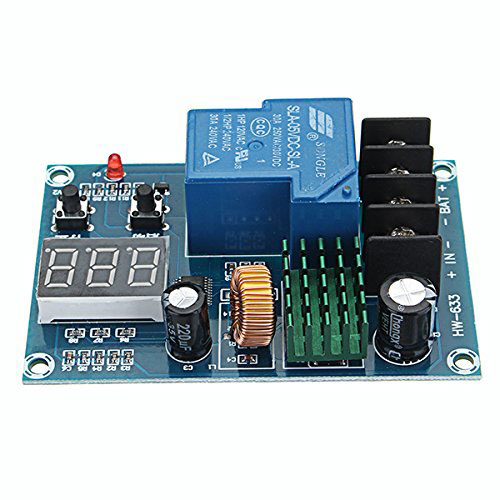

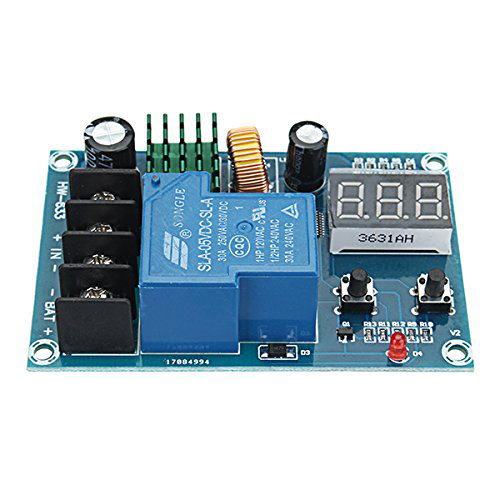

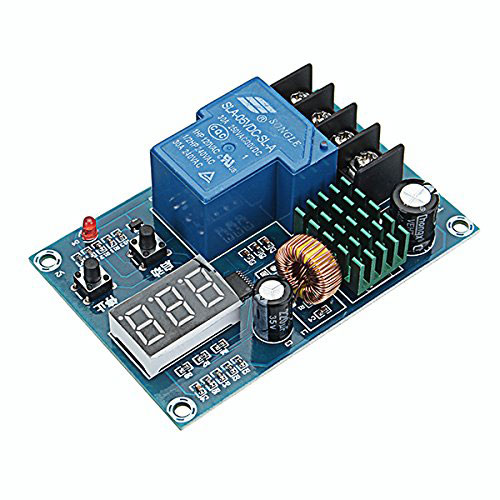

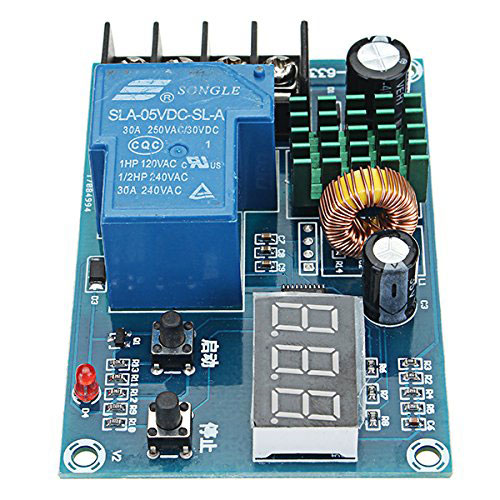

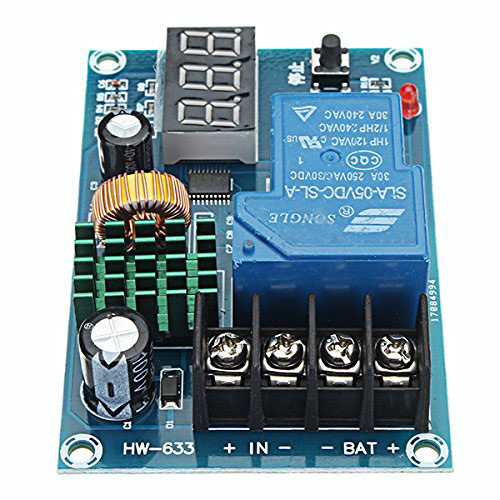

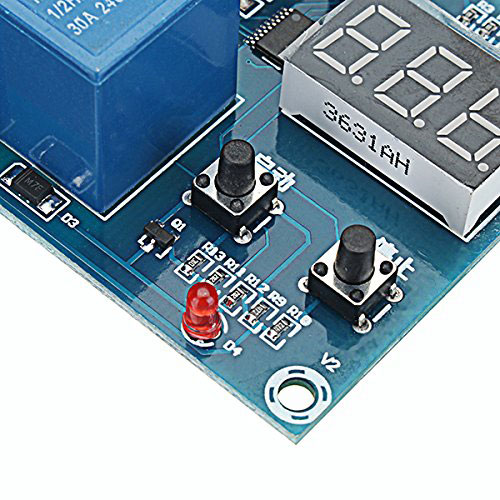

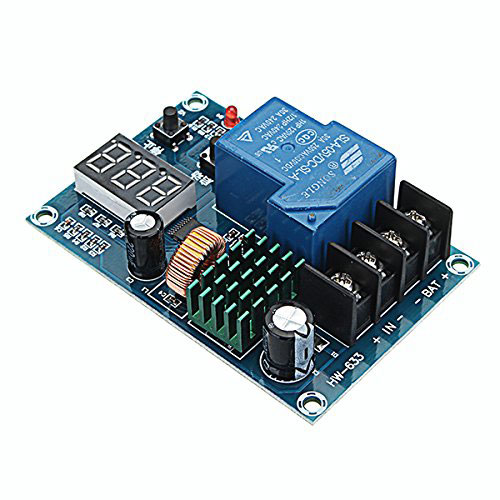

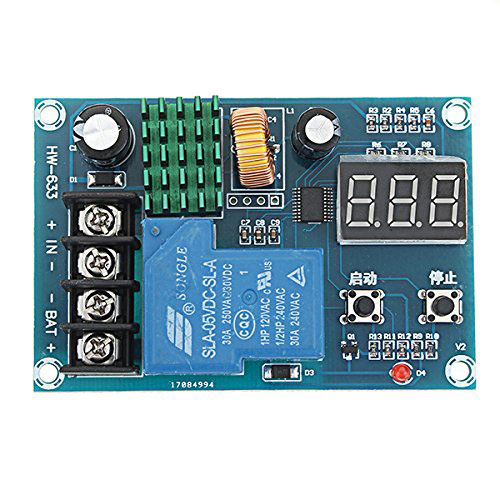

Storage Lithium Battery Charger Control Module Charge Controller Protection Switch DC6V-60V XH-M604 ? Input voltage: DC 6-60V Display accuracy: 0.1V Control accuracy: 0.1V Output Type: Direct Output Voltage tolerance: + 0.1V Applies to: 6-60V maximum 80V battery Size: 81 * 54 * 18mm Use: When setting the voltage value, start button play button, stop button role is off. 1. Set the start voltage: The voltage status is displayed normally. Press the start voltage button to display the start charging voltage. According to the start button, the number flashes, set the start and stop buttons to set the start charging voltage value. 2. Set the stop voltage: Normal voltage normal display mode, press the stop voltage button to display stop charging voltage. With the stop button, the number flashes and the charging voltage is stopped by the start and stop buttons. 3. Setup error: While in power, press and hold the Start / Stop button. The number shows 888, which is the factory setting
