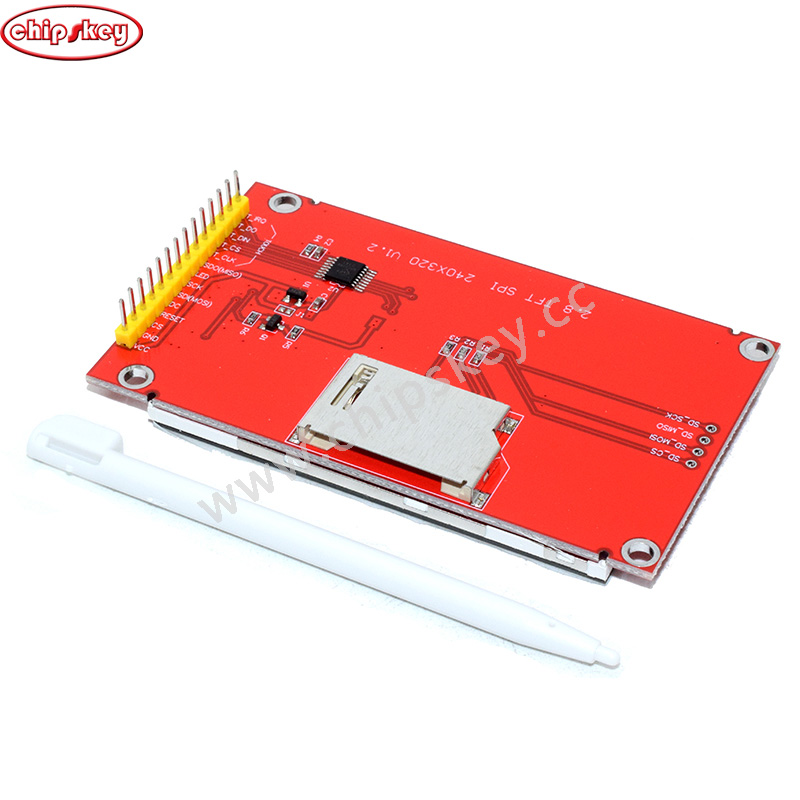

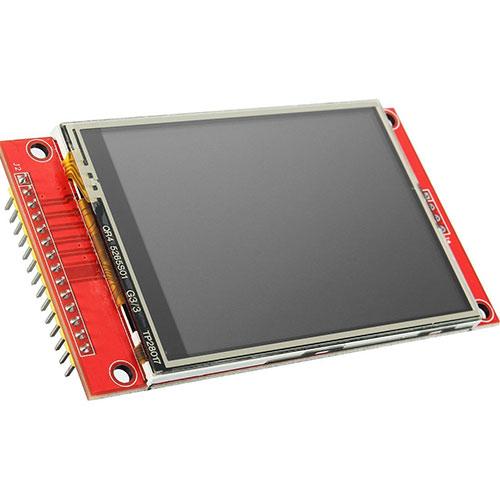

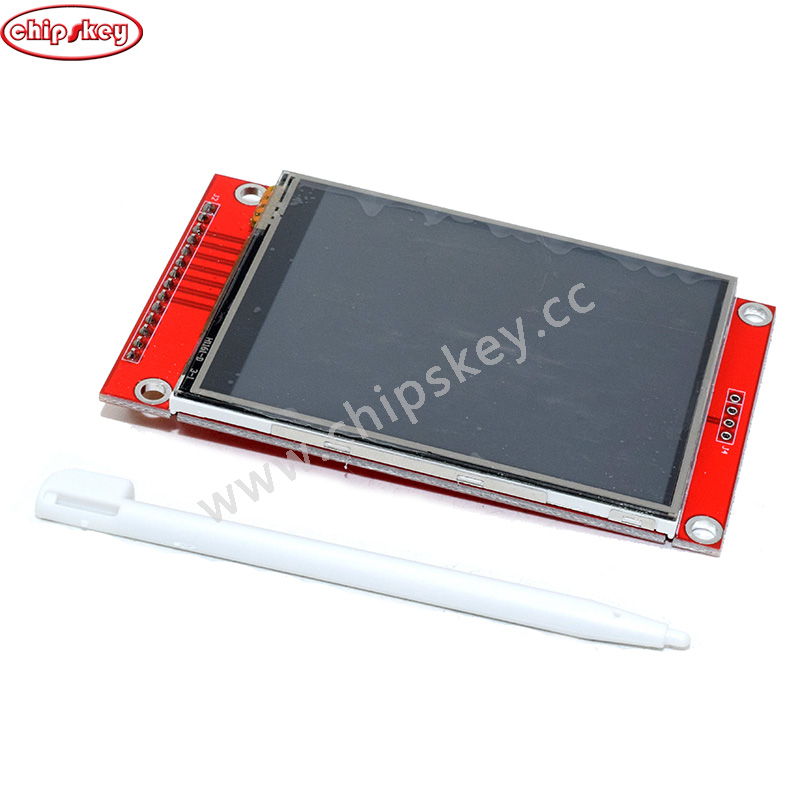

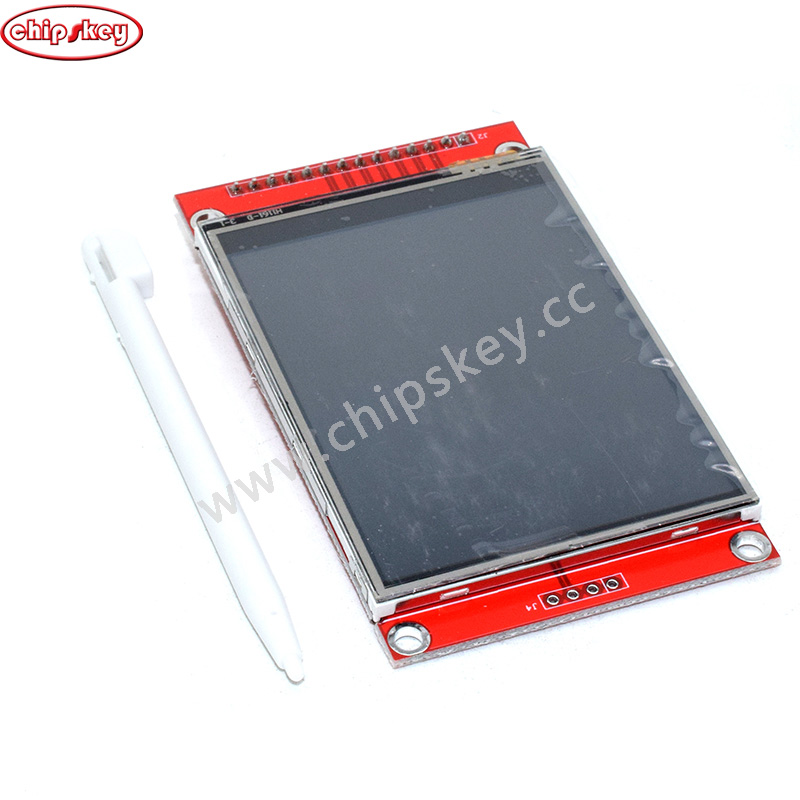

Product description Specifications: Type: Touch Panel Screen: 2.8" SPI Serial Display area: 46(W) X 65(H)mm Size: 86 x 50 mm Driver element: a-Si TFT active matrix Pixel arrangement: RGB vertical stripe Driver IC: ILI9341 Backlight: White LED Viewing direction: 6 o’clock Color depth: 262K/65K Resolution (dots): 240RGB*320Dots 5V compatible, use with 3.3V or 5V logic Need at least 4 IOs from your MCU With PCB plate (including power supply IC, SD), compatible with 5110 interface Package included: 1 x 2.8" TFT LCD Display Touch Panel Module 1 x Touch Pen
