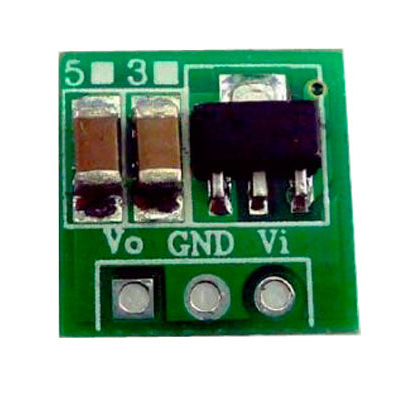

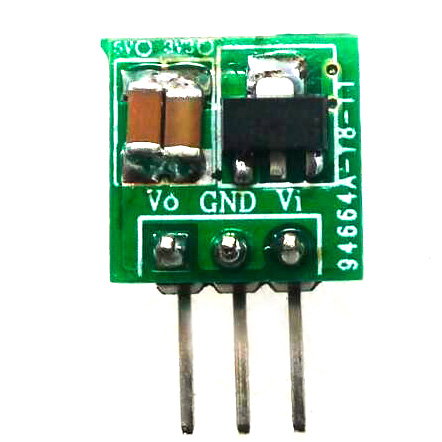

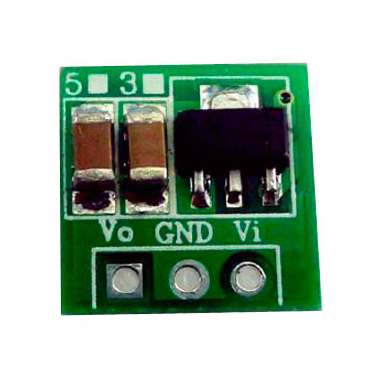

Function parameter: 5V output version: Input voltage 0.9-5V; output voltage 5V Maximum output current: 480 mA The starting voltage 0.8V, output current 7MA Input 1-1.5V, output 5V 40-100MA; Input 1.5-2V, output 5V 100-150MA; Input 2-3V, output 5V 150-380MA; Input 3V above, output 5V 380-480MA; DC-DC boost converter module, the operating frequency of 150KHZ, a typical conversion efficiency of 85% Pins 2.54MM pitch Size: 11mm x 10.5mm x 7.5mm (very small) Weight: about 1 gram (very light) This is a step-up converter module, the use of time must meet the following conditions: 1 input voltage can not be greater than the nominal voltage, otherwise it will burn the module 2 The input power must be greater than the output power, otherwise the output voltage will be less than the nominal voltage. 3 output load can not be greater than the nominal load, otherwise the output voltage will be lower than the nominal voltage.
