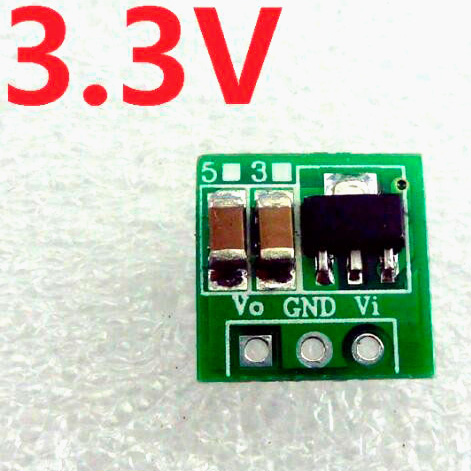

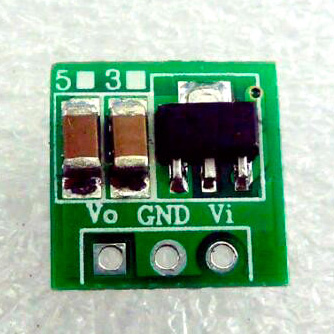

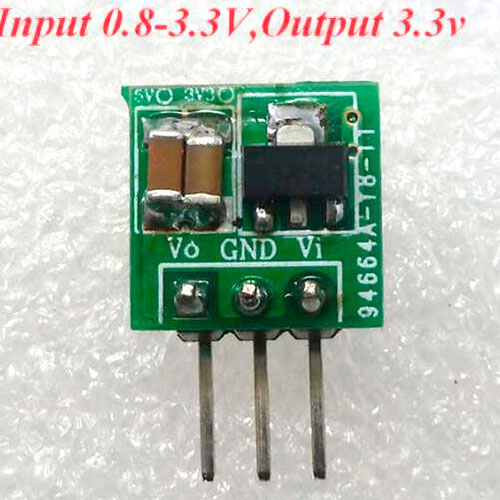

Function parameter: 3.3V output version: The input voltage is 0.8-3.3V and the output voltage is 3.3V The maximum output current: 500mA ? Start voltage 0.8V, output current 10MA Input 1-1.5V, output 3.3V 50-110MA; Input 1.5-2V, output 3.3V 110-160MA; Input 2-3V, output 3.3V 160-400MA; Input 3V above, output 5V 400-500MA; ? DC-DC boost converter module, the operating frequency of 150KHZ, a typical conversion efficiency of 85% Pins 2.54MM pitch Size: 11mm x 10.5mm x 7.5mm (very small) Weight: about 1 gram (very light) This is a step-up converter module, the use of time must meet the following conditions: 1 input voltage can not be greater than the nominal voltage, otherwise it will burn the module 2 The input power must be greater than the output power, otherwise the output voltage will be less than the nominal voltage. 3 output load can not be greater than the nominal load, otherwise the output voltage will be lower than the nominal voltage.
