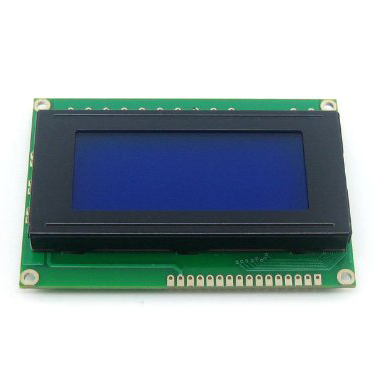

1604 LCD, 1604 LCD, LCD1604 LCD, 1604 LCD, 5V Blue Screen

Product Description
Display construction 16 Characters * 4 Lines

Display mode TN/STN

Display type Positive Transflective

Backlight LED/4.2VDC

Viewing direction 6 o'clock

Operating temperature Indoor

Driving voltage Single power

Driving method 1/16 duty,1/4 bias

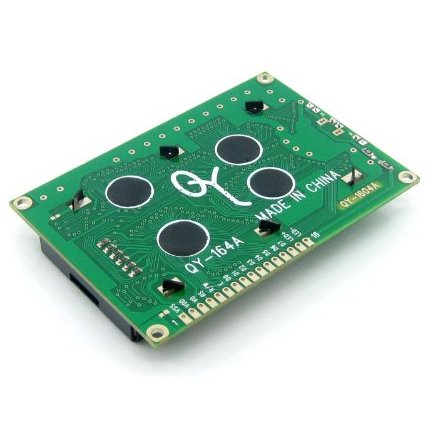

Type COB (Chip On Board)

Number of data line 8-bit parallel

Connector Pin / ZEBRA

Key Parameters
Driver IC KS0066 (compatible with HD44780)

Interface Parallel

Backlight Blue

Character Color White

Character Set ASCII

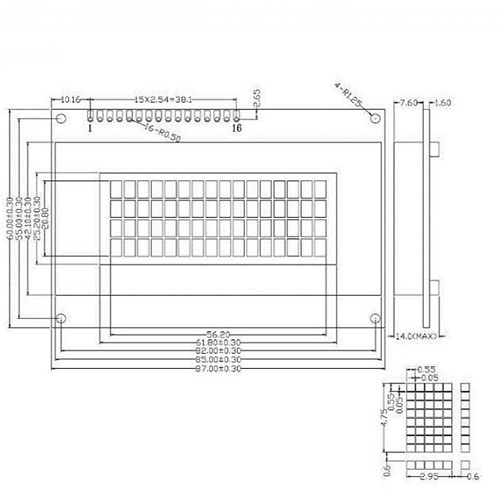

Dimension 87 * 60 * 13.5
