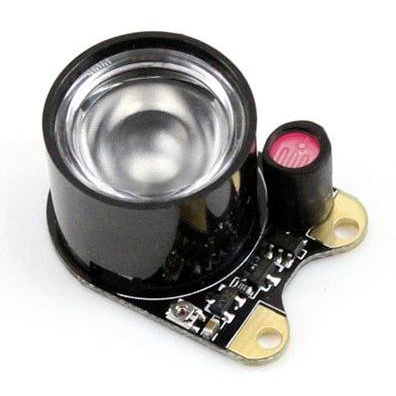

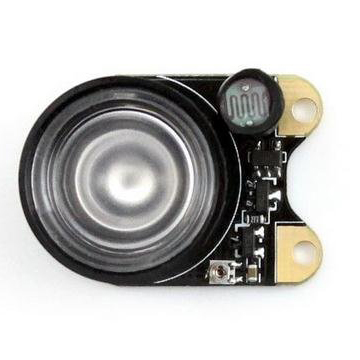

Infrared LED Light 3W High Power 850 Infrared IR Led Module with Adjustable Resistor Designed for Raspberry pi

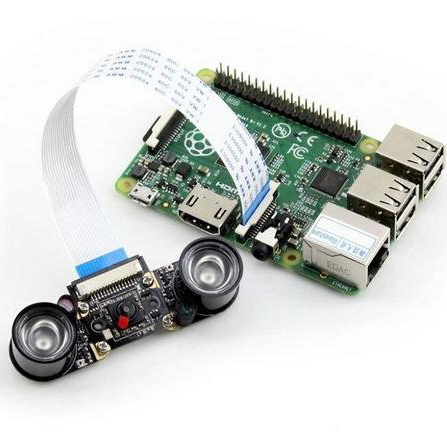

product description Color Name: 3W 850 high-power infrared Infrared light 2 Raspberry pie Infrared LED board (B) Raise night vision for raspberry pie camera (H) Wide light perception 3W high power 850 Infrared LED module feature: 3W High Power 850 Infrared LED ? On-board photoresistor, ambient light detector ? On-board adjustable resistor to control the ambient light threshold for switching infrared LEDs ? Allows night vision to be added for RPi cameras (H) ? The 140-degree field of view RPi camera (H) is 160 degrees and therefore requires 2 pieces how to use: Connect the infrared LED board to the camera PCB with screws . Screw holes for connection and power supply. Adjust the adjustable resistor to set the appropriate ambient light threshold and to switch the infrared LED automatically when the ambient light falls below a threshold. The light is on and vice versa Note: ? Limited by the power of the Raspberry Pi, a 3W high power infrared LED may cause the Pi to increase its heat level. A heat sink is recommended. The ideal imaging distance of 3 meters. When the distance reaches 6 meters, the night vision camera can capture the fuzzy outline. Package Included: ? 2 Raspberry pie infrared LED boards (B) Add night vision to raspberry pie camera (H) Wide light perception 3W High Power 850 Infrared LED Module
