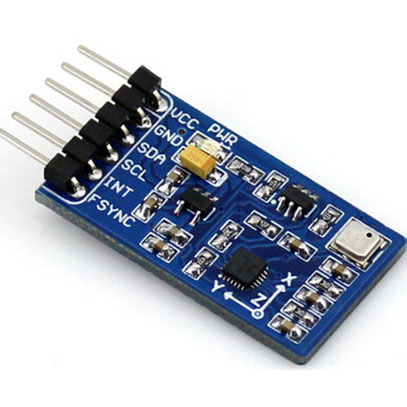

10DOF IMU BMP180 HMC5883L MPU9255 Flight Control Sensor Module MWC 3-Axis Gyroscope 3-Axis Accelerometer 3-Axis Compass Barometric Pressure Sensor Low Consumption

Onboard MPU9255 (3-axis accelerometer, 3-axis gyroscope and 3-axis magnetometer) Built-in digital motion processing engine to reduce the complexity of data fusion algorithms and reduce processor load Compared with the MPU6050, it has lower power consumption, more suitable for wearable devices On-board BMP180 (barometric altimeter), built-in temperature sensor, temperature compensation Through the I2C communication will be able to get 10-axis data Power Range: 3.3V ~ 5.5V (Internal Low Dropout Regulator) Accelerometer function: Resolution: 16 Range (optional): ± 2, ± 4, ± 8, ± 16 grams Working current: 450uA Gyro features: Resolution: 16 Range (optional): ± 250, ± 500, ± 1000, ± 2000 ° / sec Working current: 3.2mA Magnetometer function: Resolution (optional): 14 or 16 Range: ± 4800μT Working current: 280uA Barometric Altimeter Features: Resolution (optional): 16-19 Range: 300 ~ 1100hPa (elevation: 9000m ~ -500m) Accuracy: 0.02hPa (0.17m)
