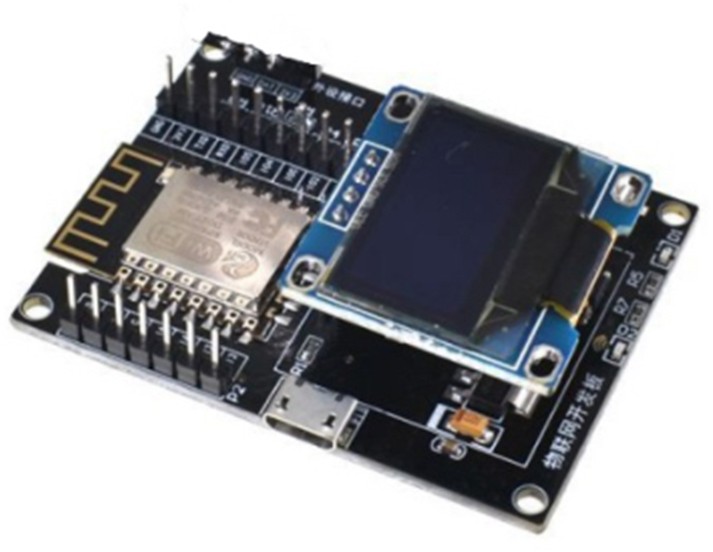

ESP8266 Shield Board + 0.96 OLED Screen
Overview:
This module takes the ESP8266 module as the core, cooperates with the voltage regulator circuit, USB-TTL circuit and serial port download circuit to realize the SDK development of ESP8266 and realize the Internet of Things function.
Feature:
Working voltage: 5V (USB powered)
Core chip: ESP8266 module (ESP-12F)
Expansion interface: 4Pin OLED
Realize the function: access the Internet, realize the Internet of Things
Symbol Description
P1 MiniUSB Power supply + Serial communication
P2, P5 module interface OLED
P3, P4 pin header interface VCC / GND + IO port
P6 module ESP8266 module (ESP-12F)
