PWM DC motor governor 12V24V36V48V20A high-power drive module

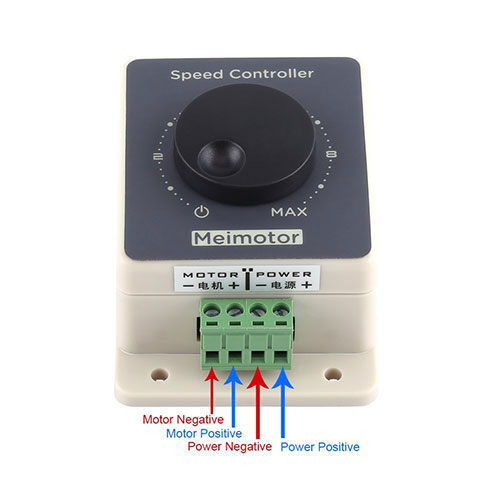

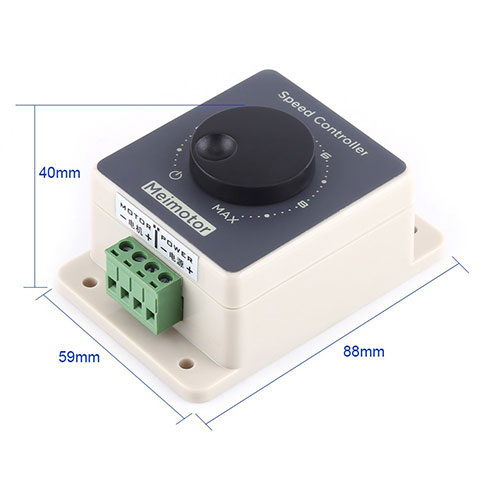

Product features This speed controller has a delicate and practical housing which is waterproof so you can use it out of doors Comes with screw terminal and a indication label of power and motor electrodes for convenient wiring DC motor controller input is connected to direct current, can not be connected to alternating current, or it will be burnt Make sure the positive and negative polarity is connected correctly, otherwise the controller will be damaged Suitable for 12V motors with power less than 120W, 24V motors with power less than 240W, etc Product description Description: This is a simple and easy-to-use DC motor speed controller of small size, elegant appearance and stable performance. It is made with high quality circuit board which ensures a longer service life. The input voltage can be DC 10V to 60V and output voltage is 0-100% of the input voltage. This speed controller is quite convenient to set. Specifications: Potentiometer Resistance: B100K Input Voltage Range: DC 10V-60V Output Voltage: 0-100% of the input voltage Control Power: 12V*10A=120W,24V*10A=240W...... Rated Current: 10A Max Current: 20A Speed Range: 5%-100% PWM Frequency: 25Khz Size: 88 x 59 x 40mm / 3.46 x 2.32 x 1.57" Tap Hole Size: 8mm / 0.31" Package Includes: 1 x Speed Controller Note: 1. Please allow 1-3cm error due to manual measurement. Thanks for your understanding. 2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
