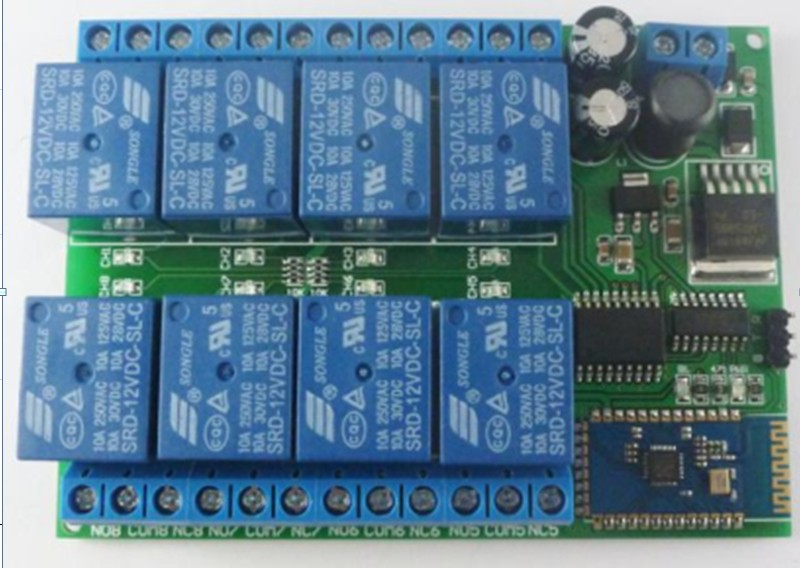

DC 12V 8-channel Bluetooth relay Android mobile phone wireless remote control switch remote control Specification:
1: Working voltage: DC 12V
2:12V standby current (all relays off) 15MA, 1 relay "open" 41MA, 2f relay "open" 69MA, 3-way relay "open" 96MA, 4-way relay "open" 123MA, 5-way relay "open" 150MA, 6-way relay "open" 177MA, 7-way relay "open" 203MA, 8-way relay "open" 229MA
3: Send commands through the Bluetooth APP to control the conduction and disconnection of the relay (we provide the Bluetooth APP, you can also use your own APP to control the relay, send a simple command to control)
4: Jog Self-locking Interlock Relay "open", relay "off" 5 instructions
5: The name and connection password of the Bluetooth can be modified by the AT command. For details, see "Bluetooth Parameter Modification Instructions".
6: Size: 96*68*19mm
7: Weight: about 117 grams
Communication method: 2.1 Bluetooth
Communication distance: 6-10 meters (depending on the actual environment)
Control method: mobile phone Bluetooth wireless remote control relay switch
Control port: 4 switches with normally open and normally closed functions
Control voltage: AC 85-265V 10A, DC 1-110V 10A
Bluetooth password: 1234
