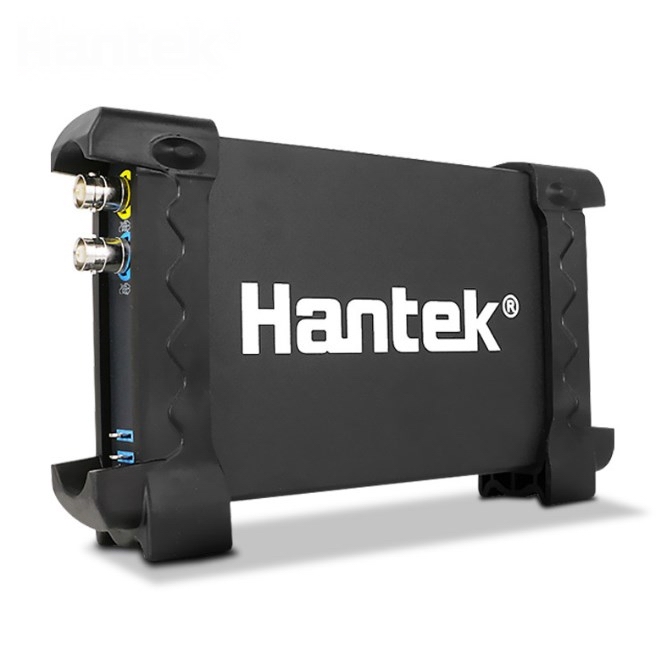

Product description Channel:2 Channels Bandwidth:20MHz Shot bandwidth:DC to 20MHz Input Impandence:1MΩ 25pF Max. Sample rate:48MS/s Vertical resolution:8Bit Gain range:20mV-5V, 8Steps DC accuracy:±3% Timebase range:1ns-9000s, 39 Steps Vertical adjustable:Yes Input protection:Diode clamping X-Y:Yes Trigger Mode:Auto, Normal and Single Trigger Slope:+/- Trigger level adjustable:Yes Trigger Type:Rising edge, falling edge Trigger Source:CH1, CH2 Pre/Post trigger:0-100% Sampling selection:Yes Waveform Display:port/line, waveform average, persistence, intensity Network:Open/Close Vertical mode:CH1, CH2, Dual, ADD Cursor measurement:Yes Math:FFT, addition, subtraction, multiplication, division Cursor:Frequency, Voltage Operating system: Windows 7, Windows NT, Windows 2000,Windows XP, VISTA Supply DEMO code(VC、CVI、VB、LABVIEW) and technical support Cost-effectiveness; Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability. 23 measurement functions, PASS/FAIL Check, be suitable for technical application Waveform average, persistence, intensity,invert,addition, subtraction, multiplication, division,X-Y plot. Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file. FFT USB2.0 interface, no external power source required, easy to use. Be suitable for notebook computer, product line maintenance,be used easily on business. One computer can connect many DSO, extend channel easily. LabviewVBVCDelphiC++Builder Second Design instance.
