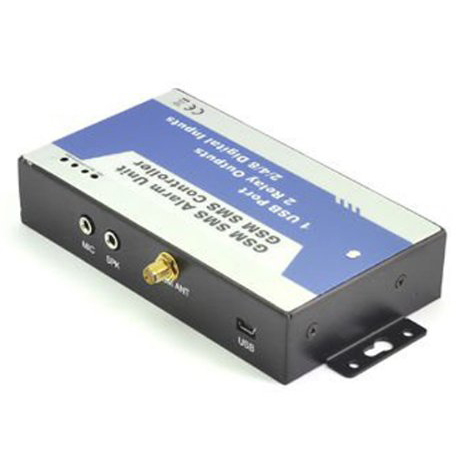

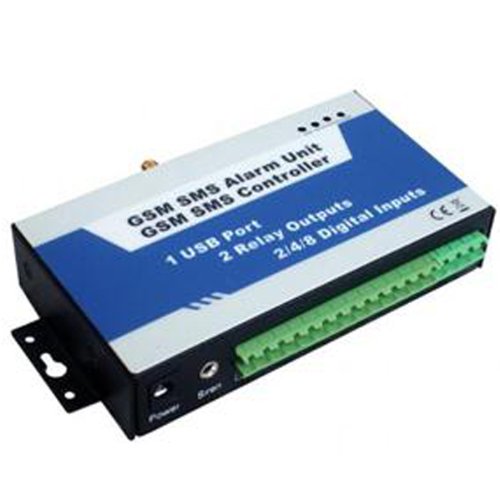

GSM Remote Switch SMS Controller 2-Channels Controller

Product description
GSM Frequency 850/900/1800/1900Mhz

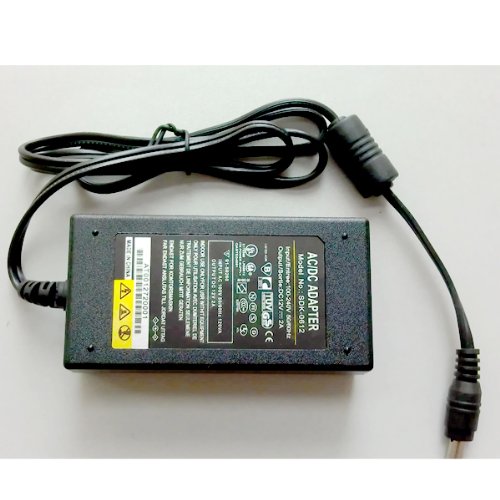

Power adapter DC 12V/1.5A

Power Current Max(500mA), Type(50mA)

SIM Card Supporting 3V SIM Card

GSM Antenna 50 Ohm SMA antenna interface Serial USB Port

Import Type 8 Dry Contact, NC,NO,EOL Output Type 2 Relay Output, 240VAC/3A, Relay inside

Dimension L*W*H 153*86*28 mm

Backup-power 3.7V 1200MAh Li-on battery

Temperature -20°C to +60°C

Humidity Relative Humidity 20-95% ( condensation free)

Net Weight 320g

Electical Characteristics 25°C

SMS Alarm Numbers 3

Dialing Alarm Numbers 5

Voice Call In Yes

On-site Alarm Yes

AC Power Failure Alarm SMS

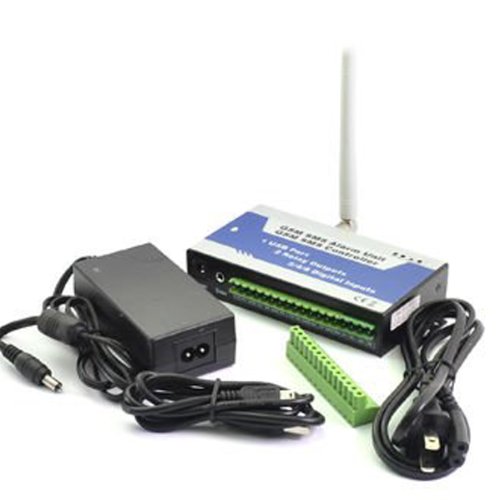

Optional Accessories:

Gas Leak Sensor, Glass Break Sensor, Shock Sensor, Power failure sensor, etc.

The GSM SMS Controller-Alarm suitable for below applications:

10. Corrosion protection

11. Temperatures, water leakage applications;

12. Wellheads, boat, vehicle;

13. Energy saving, street lights control system;

14. Valve controls;

15. Transformer stations;

16. Unmanned machine rooms;

17. Control room application;

18. Automation System, M2M;

19. GSM Access Control System, GSM Gate Opener, etc.

Features of the GSM SMS Controller-Alarm

1 relay output (240VAC@3A) can be switched ON/OFF by sending a SMS text;

1 relay output (240VAC@3A) can be switch on 4minutes if any inputs triggered;

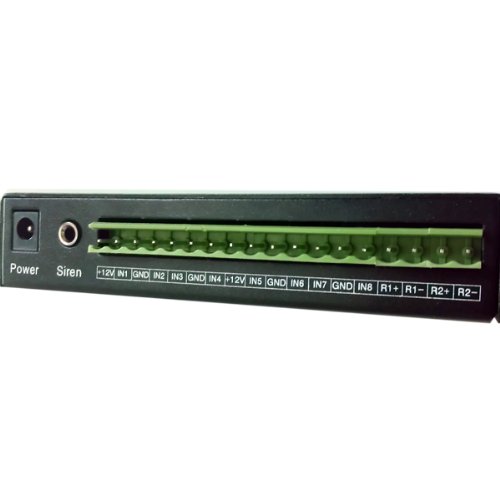

8 Alarm logic inputs, NC or NO and EOL is optional;


Product information
Item Weight 1.76 pounds
Shipping Weight 2.2 pounds
