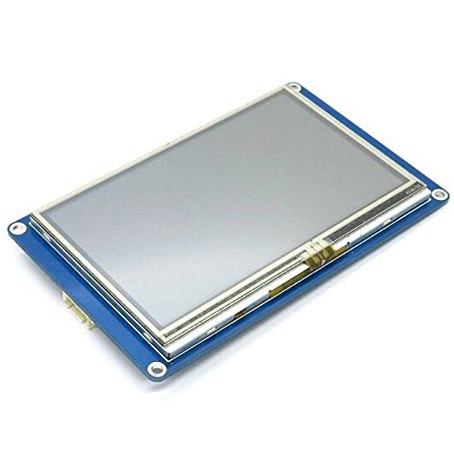

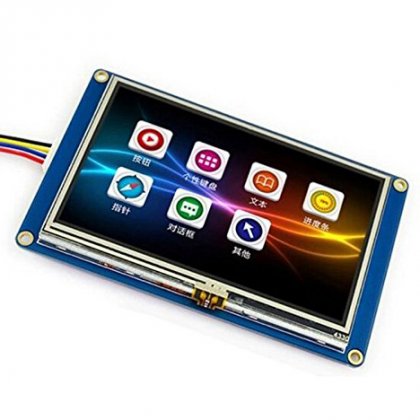

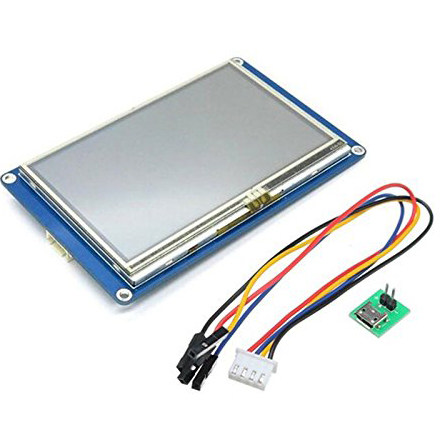

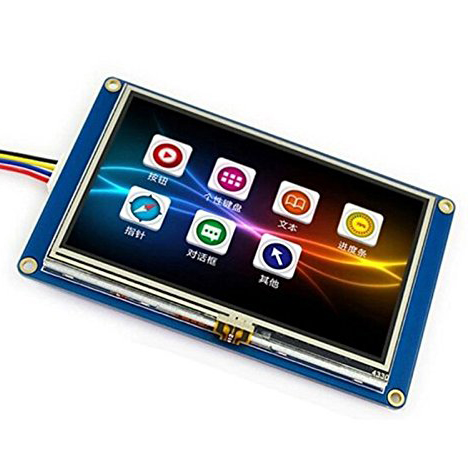

4.3-inch USART HMI serial port configuration control GPU host editing TFT LCD screen

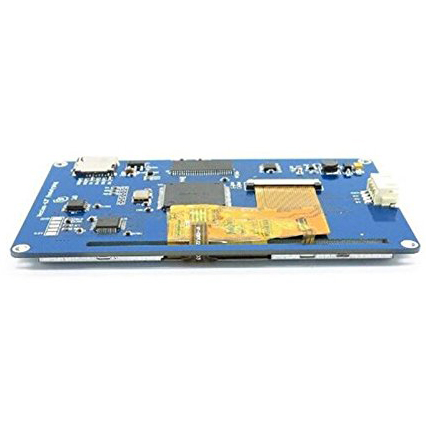

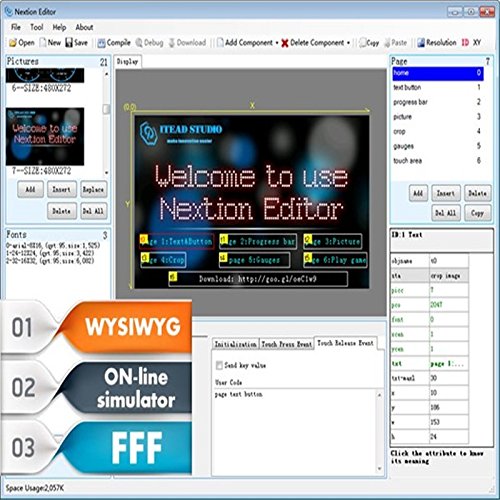

product description Description: The NX4827T043 is a seamless human-machine interface (HMI) solution that provides a control and visual interface between people and processes, machines, applications or devices. Replace the traditional LCD and LED digital tube is the best solution. The NX4827T043 includes a hardware section (a series of TFT panels) and a software section (NX4827T043 editor). The NX4827T043 TFT board uses only one serial port for communication. It allows you to avoid the hassle of wiring. We noticed that most engineers spent a lot of time on application development, but the results were not satisfactory. In this case, the NX4827T043 editor has a wealth of components such as buttons, text, progress bars, sliders, dashboards, Your interface design. Drag and drop ensures that you spend less time programming, which will reduce development effort by 99%. With the help of this WYSIWYG editor, designing a GUI is a piece of cake. NX4827T043 Series HMIs easily adapt to existing projects, you only need to provide a UART. NX4827T043 is a powerful 4.3 HMI that is a member of the NX4827T043 family. Features include: 4.3 "TFT 480x272 Resistive Touch Screen Display, 16M Flash, 2KByte RAM, 65k colors characteristic: Compatible with Raspberry Pi A +, B + and Raspberry Pi 2. 480 x 272 resolution RGB 65K true color TFT screen integrated 4-wire resistive touch screen Easy to connect to any 4-pin TTL serial host interface User application code and data 16M flash Onboard micro-SD card for firmware upgrade Visual area: 95.04mm (L) × 53.86mm (W) Adjustable brightness: 0 ~ 230 nit, adjust the interval of 1% 5V250mA power consumption Display resolution: 480 * 272 Display Interface: Serial port Screen type: touch screen Display Controller: None TFT display interface: N / A Display Size: 4.3 "
