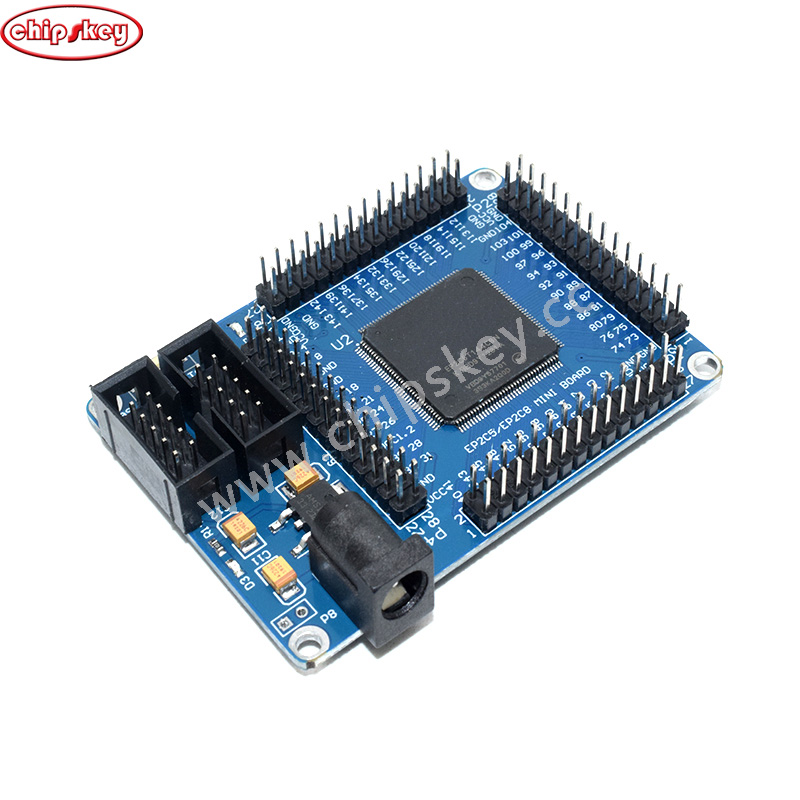

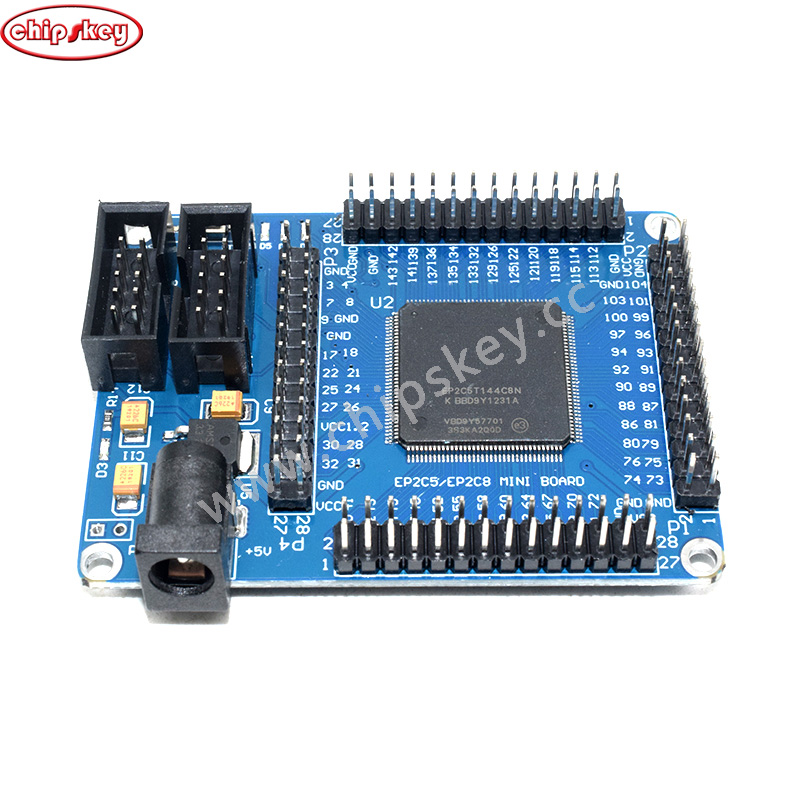

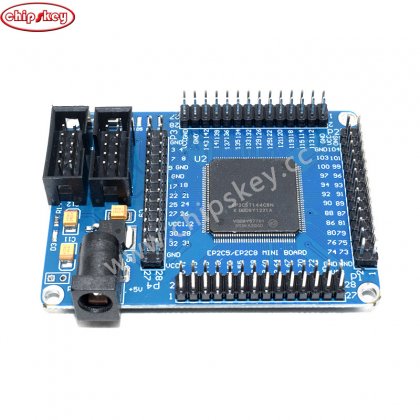

ALTERA FPGA CycloneII EP2C5T144 minimum system, learning board development board

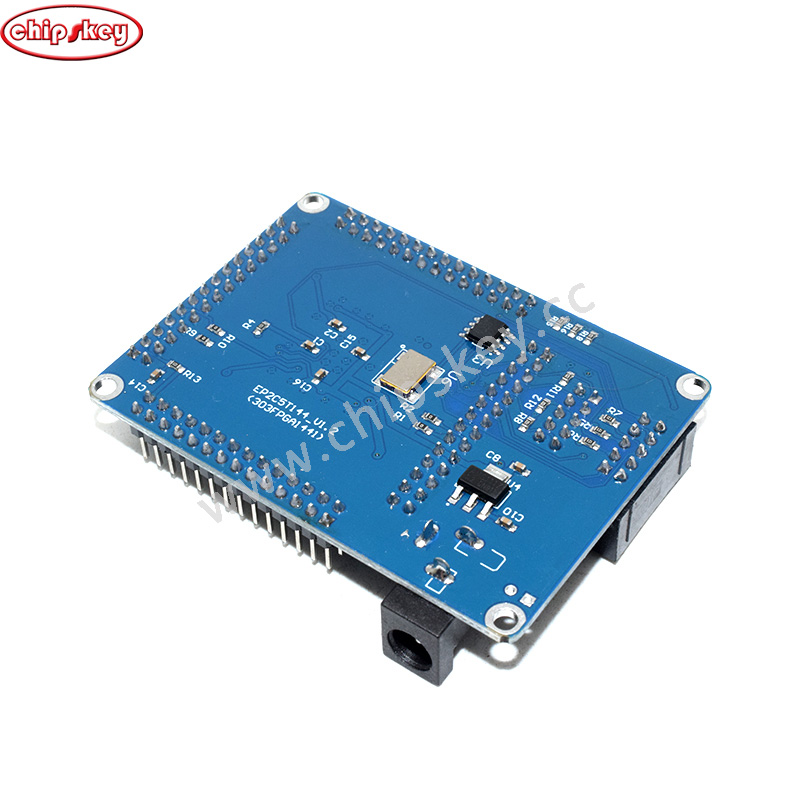

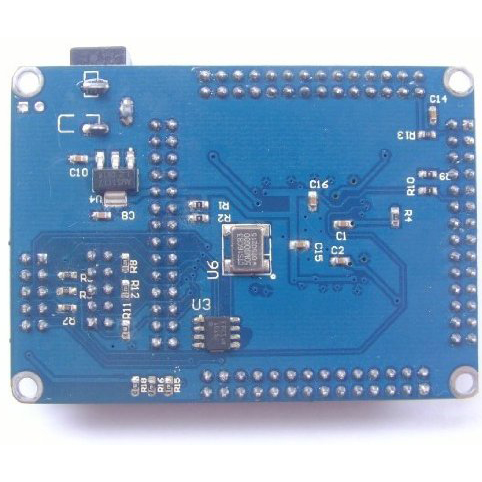

Features: Brand new ALTERA FPGA CycloneII EP2C5T144 Mini Development Board Minimum System Board for Learning Using ALTERA Company CycloneII EP2C5T144 chip as the core of the smallest system, the FPGA easily embedded into the practical application of the system Complete from simple logic control, data acquisition, signal processing, mathematical calculation functions Core board FPGA chip all the leads all the pins can be applied directly to the board into the board, the board's 5V power supply can be introduced through the outlet can also be introduced through the front row Very compact size: 6*8cm Hardware configuration : 1. chip onboard EP2C5T144 2. Configuration EPROM chip EPCS4, size 4Mbit 3. Onboard 50M active patch oscillator (crystal in the back of the board) 4. outlet power supply with a big mouth, a single 5V power supply 5. panel power indicator and reset switch 6. on-board 3 SMD LED, LED testing laboratory can do more experiments using lead 7. All the IO ports and clock pin through pin leads, through any of these interfaces can be extended memory and peripherals 8. boards made of high-quality power supply filtering tantalum capacitors 9. support the development of embedded CPU NiosII
