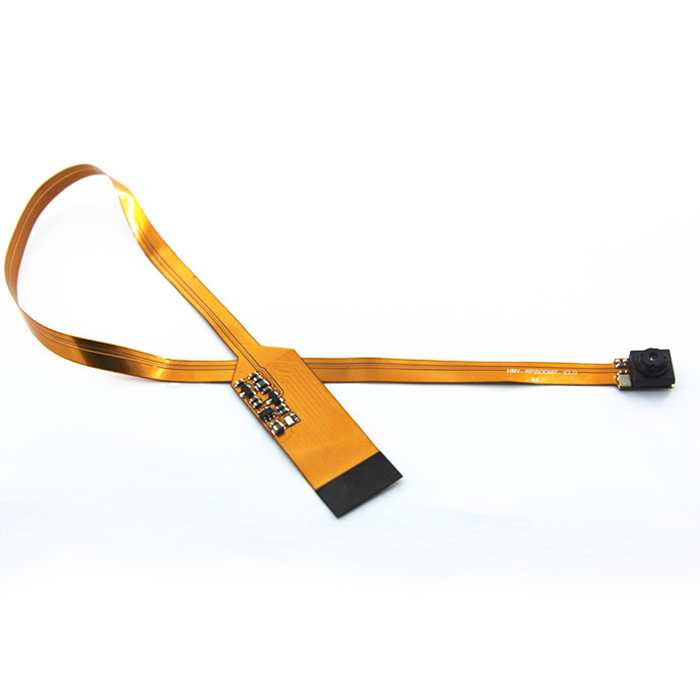

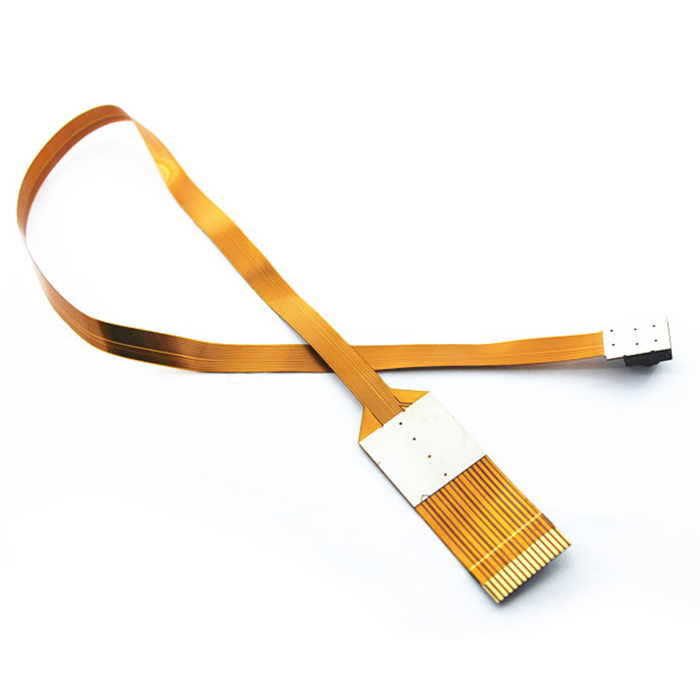

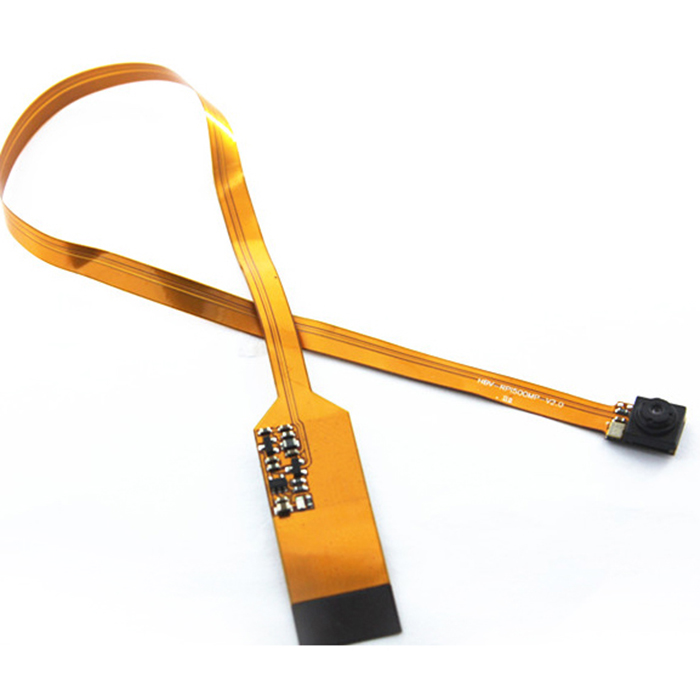

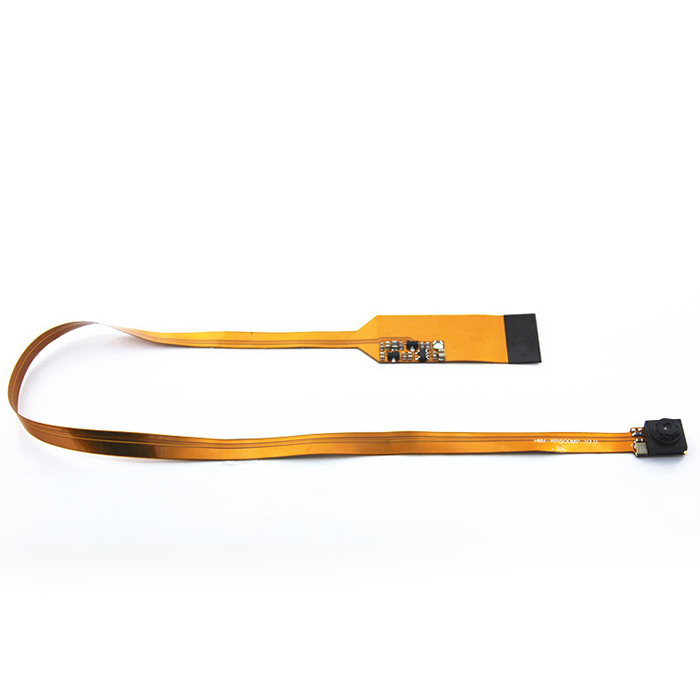

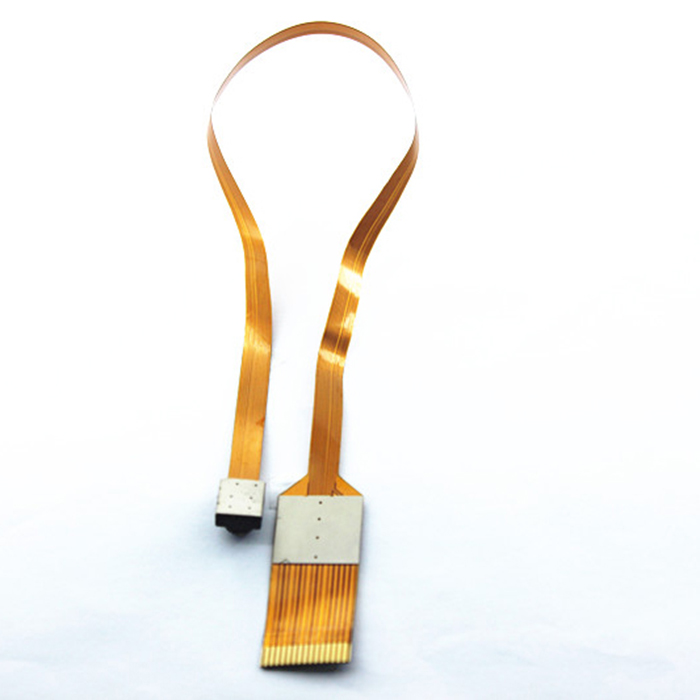

Camera specifications:
1. Product pixel: 5 million pixels 2. Product size: 30cm 3. Chip model: OV5647 4.FOV: 72.4° 5. Use object: Raspberry Pi motherboard How to use with the Raspberry Pi motherboard: 1. Soft cable, 90 degree vertical connector, next to the HDMI port. When connecting, the contact side faces the HDMI interface. 2. Remove the protective film from the lens before use. 3. Bare board, pay attention to ESD damage, beware of static electricity! ? 1. RPi firmware and raspi-config have been updated for the camera, please perform an apt-get update; apt-get upgrade; 2. Select camera in raspi-config, start the camera driver in RPi firmware, and then restart 3. Use the command line programs raspivid and raspistill to operate the camera to capture video clips or images 4. The captured video clip needs to be played with mplayer'
