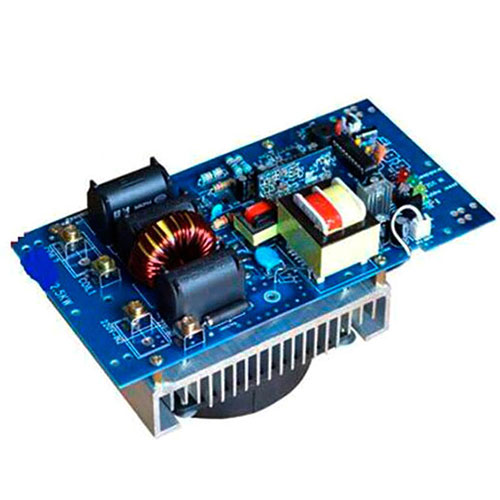

2.5KW Electromagnetic Heater

1: Size: 194 * 102 * 90 (L * W * H)
2: Operating voltage: 220V current 10-11A
3: Power (adjustable): 2100W-2500W
4: Load inductance: 130-140uH (with the victory of the BICTOR6243 + inductance measurement)
5: Conversion efficiency> 90%
6: Working frequency: 20-25kHZ
7: Operating temperature: -10 degrees to +50 degrees
8: work: continuous heating
9: Wave Protection - + 1500V
10: anti-clutter interference: 4000V heating body,
11: induction coil heating body installation distance of 15-20mm (insulation cotton and epoxy board thickness consistent)
12; multiple sets of coils and coils around the same heating element distance greater than 6 cm,
13: 4 square line, effective length of about 12-14 meters, the general use of 13.5-14 meters inductance is only a parameter, in fact, is to measure the line current, incoming current 10-11A
?
Then, the inductance meter (Victory Card 6243 +) measures the input current and the rated input current. If it is not adjusted clockwise by the potentiometer, then adjust. Note that if the current display value is small, it can not be adjusted, it may be too much inductance and needs to be reduced Inductance. (Inductance decreases, is to reduce the number of turns, into the line current, increase the number of turns.) Second, the wiring instructions
1, three lights, such as "power light", "work light", "fault light" light. Normal operation of the "power light", "work lights" in the light. "Fault light" goes out. When the circuit is faulty, the "Fault light" indicator flashes.
2, the power 220V connected to the "220V AC" pillar, regardless of FireWire can easily access the line.
3, the coil connected to the "ends of the solenoid coil" ends, tighten the screws.
4, the motherboard factory set to work for the power supply, and then "switch control" socket short-term (black) short socket. You can also gently short circuit (black) in the "switch control" socket, plug the two wires at the end of one plug into the "switch control" socket and connect the two plugs on the other end to the thermostat normally open two contacts Point, can be connected trial
