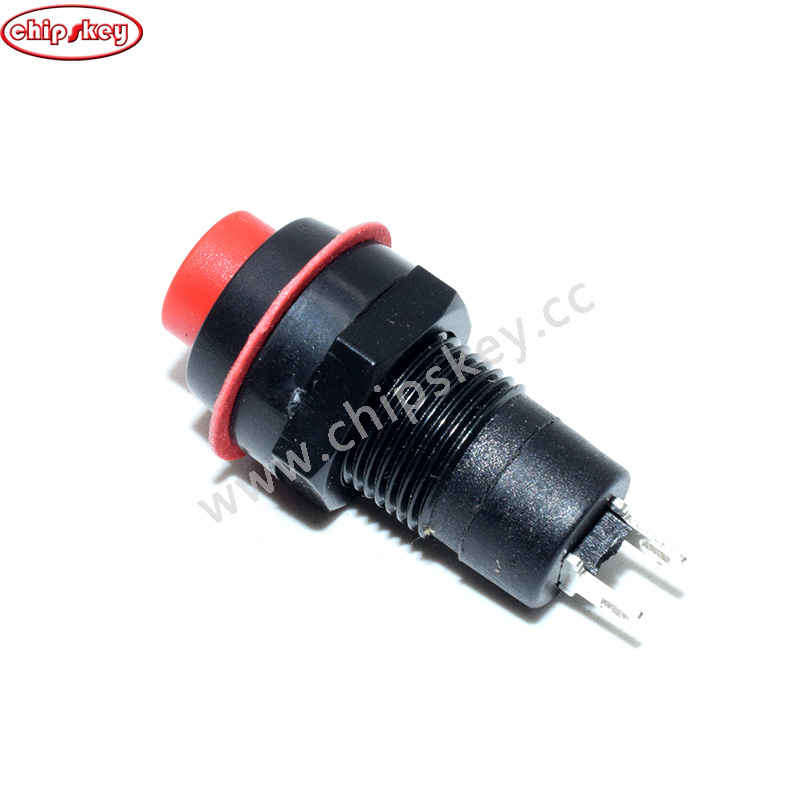

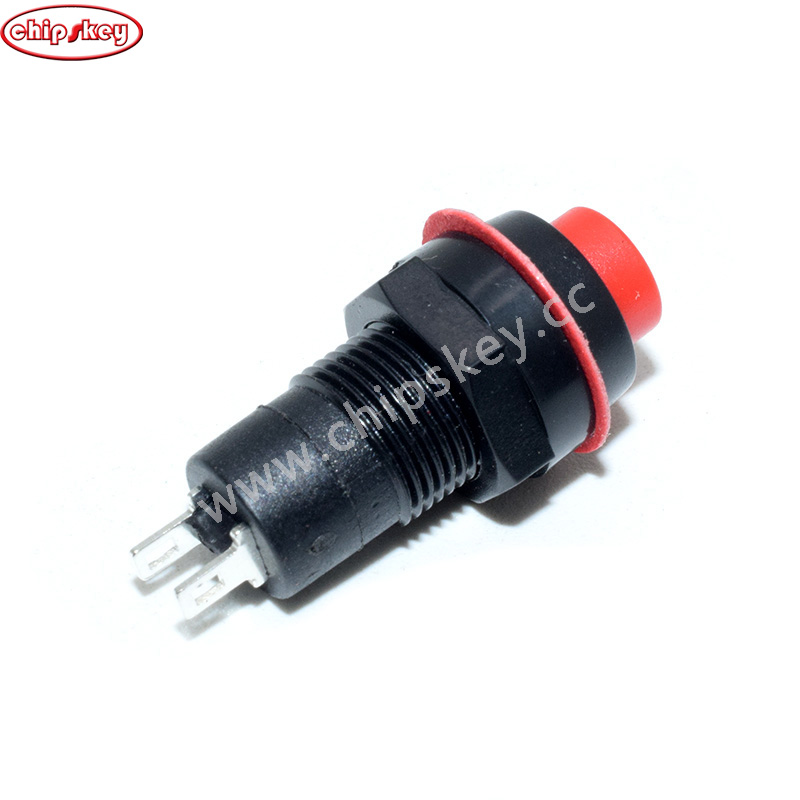

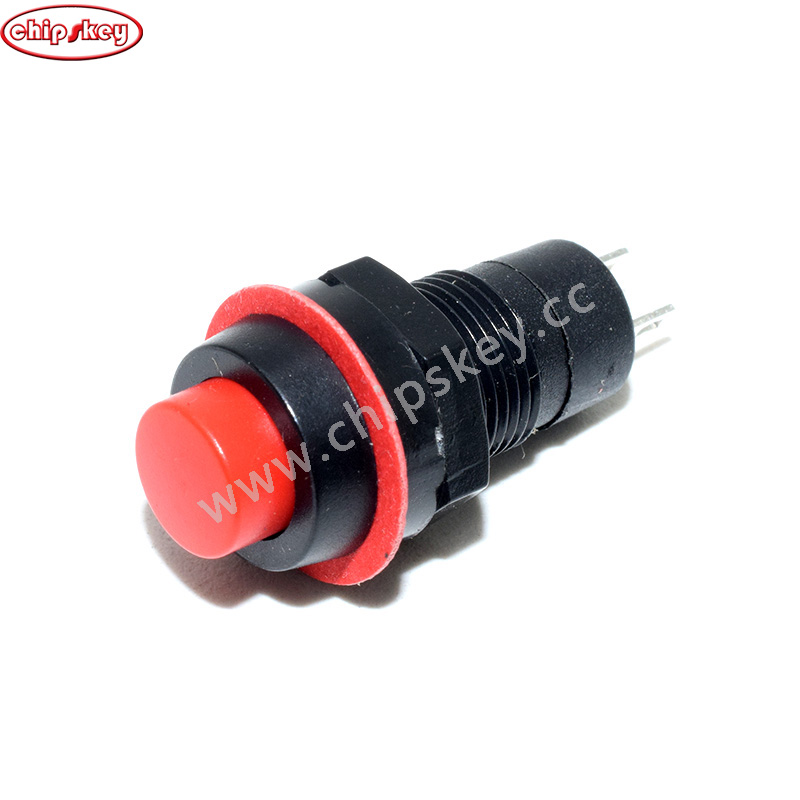

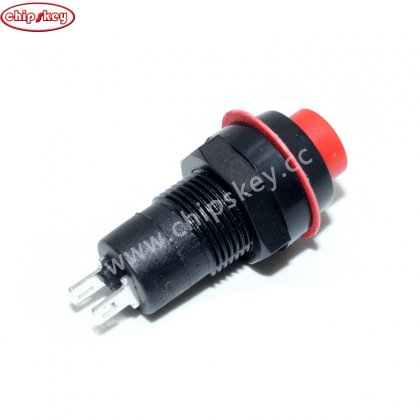

No Lock Switch / Self Reset Button Switch / DS-213 10MM 1A / 250V Green
DS-213 125V 3A 10mm no lock ON/OFF Switch Push Button Round
Specifications:
Model: DS-213
Item: no lock Switch
Contact Structure: Normally Open (NO)
Working Power: 125V 3A / AC
Max Power: 250V 1.5A
Contact Resistance: 20 (Ω)
Insulation Resistance: 100 (MΩ)
Thread Diameter: 10mm
Pin Number: 2
Working Life: Apprex. 200000 Times
Color: Red, Black
Features:
1. no lock ON/OFF push button switch is suitable for 10mm diameter mounting hole.
2. Used widely for circuits control in electromagnetic starter, contactor, and other electric circuits.
