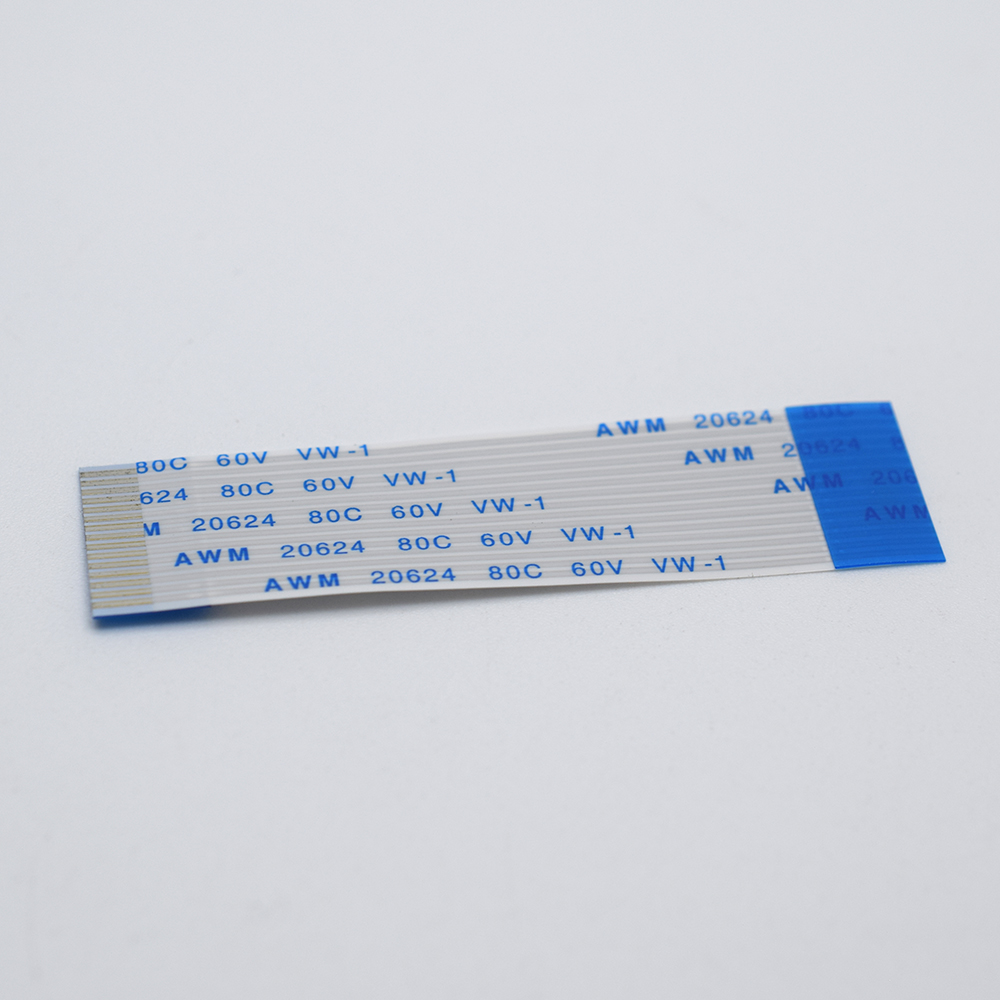

FFC/FPC 15P 1.0mm 50mm Length A-B
Overview:
0. FFC soft cable 1.0 pitch 15pin, Direction is different direction.
1. P = bit = core = pin (number of copper)
2. Cable length optional. 5cm.
3. Spacing: the distance between the two needle center. If uncertain, measure the bus width (unit: mm)
Spacing algorithm: bus width / (number of pins+ 1)
4. Direction (check the ends of the cable): A-B Direction is different direction.
5. Test with Lerdge board. Use the board test with the 2 meters cable (without shielding tape), and with the cable winding the stepper motor. The touch screen display operation is normal, no interference phenomenon, the test passed.
