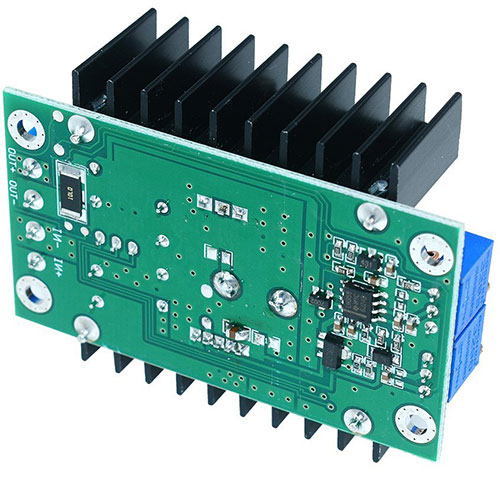

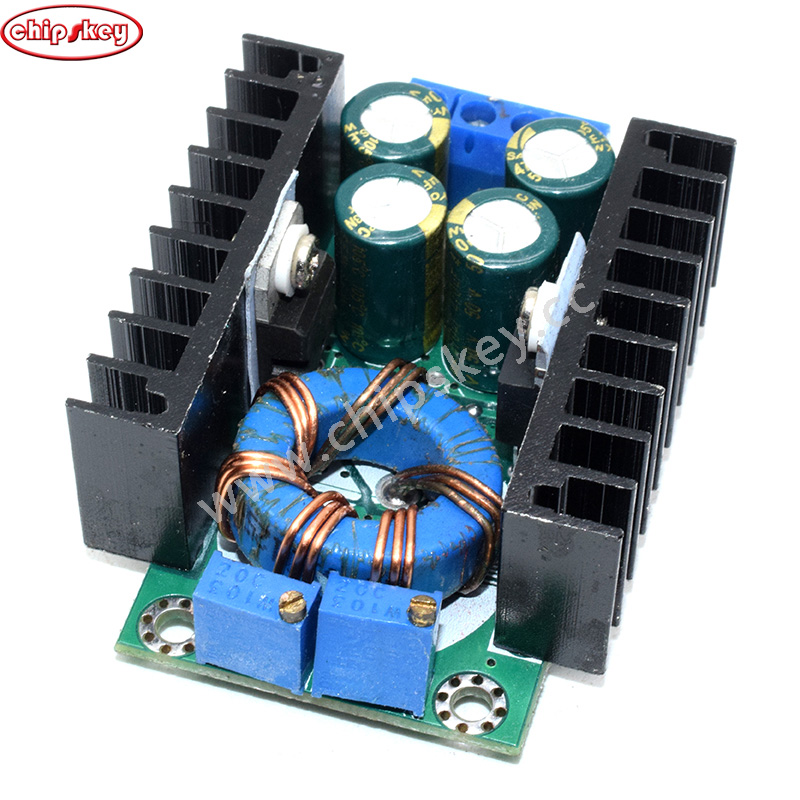

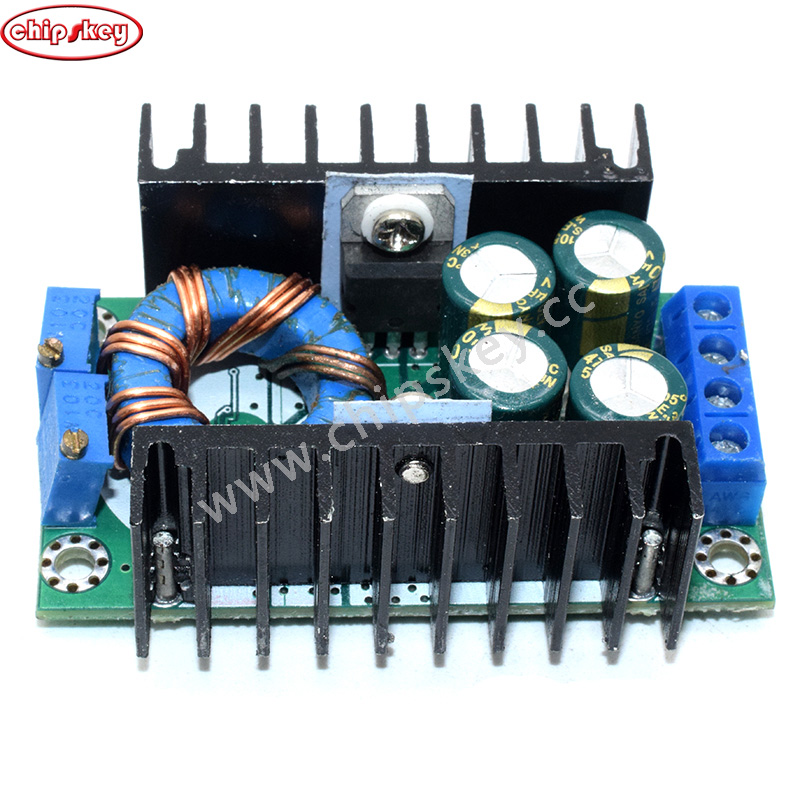

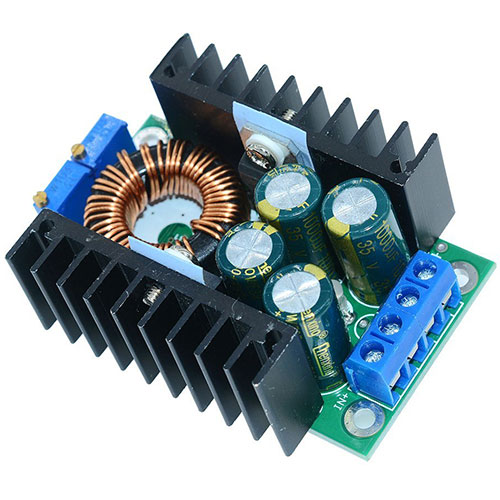

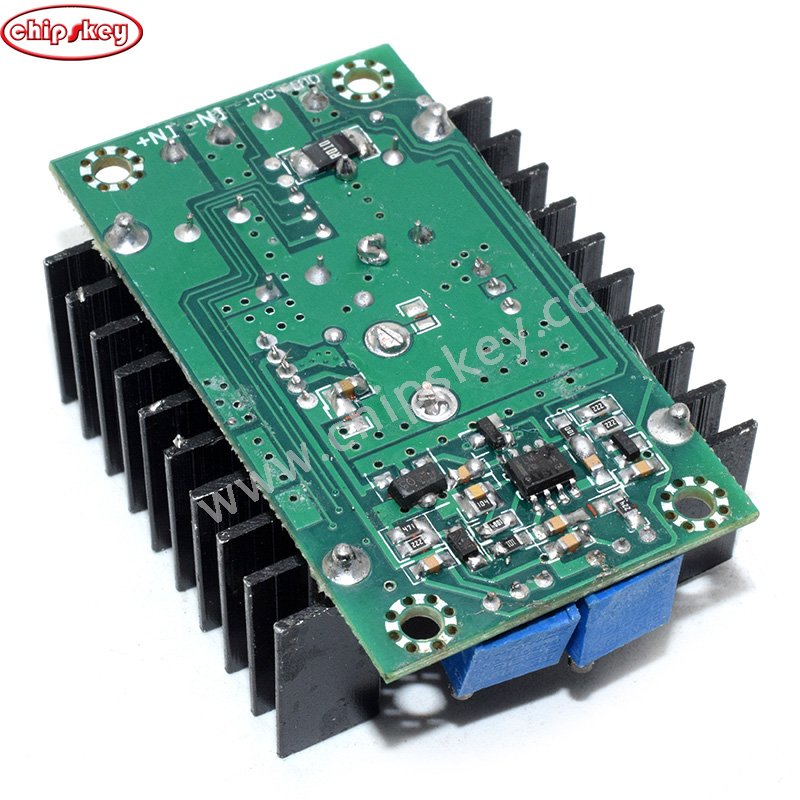

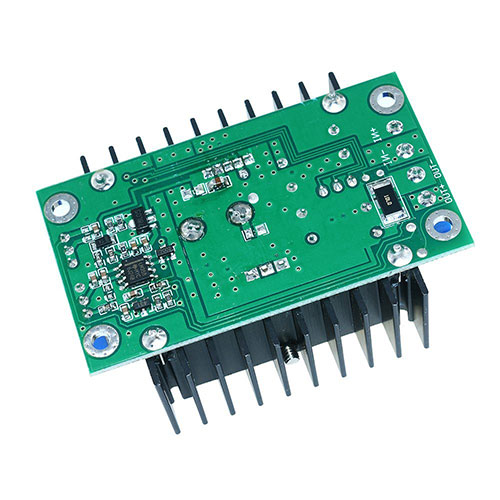

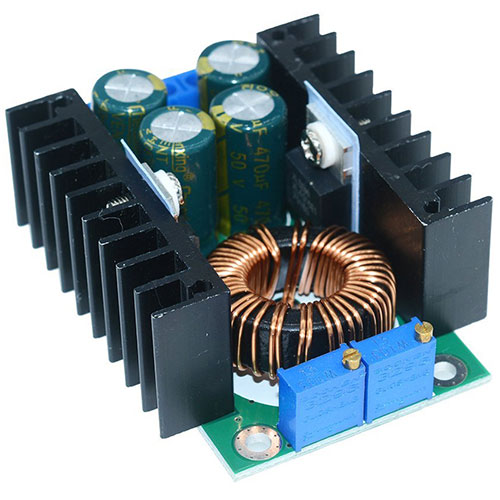

XL4016 280W Step Down Buck Converter

product description
feature:

Use a dedicated reference IC and high-accuracy current sense resistor.
Can make more stable constant current.
High output current, the maximum output current up to 9A.
Low output ripple, high frequency capacitors reduce output ripple.
Suitable for LED driver.

specification:
Material: PCB board and electronic components.
Input voltage 7-40V (constant 5-40V)
Output voltage (1.2-35V)
The maximum output current of 9A
Maximum power 280W
Frequency 180KHZ


note:
Current and voltage have a reference value.
It does not say that you want 5A 12V, you can achieve, so you can refer to the test indicators.
Output power: the maximum power of about 300W, power tube temperature over 65 degrees Please add the fan. No short circuit protection.

product information
Product size 2.5 x 0.9 x 1.9 inches
Project weight 0.64 ounces
