WT588 WT588D-16P Voice Downloader

WT588 WT588D-16P voice downloader

Product Features
PWM audio output directly drive small speakers 0.5W8 Europe and WT588D to be set to PWM output mode;
DAC audio output, requires external power amplifier, WT588D to be set to DAC output mode
Lock the seat can be placed WT588D module, WT588D plug SPI-Flash (need to convert the seat), place the end.

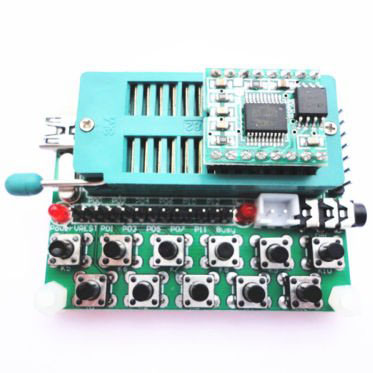

1PCS WT588D USB Audio Recorder Voice Programmer Downloader VoiceChip WT588D-16P 28P
product description
1, DAC audio output, you need an external amplifier, and WT588D to be set to DAC output mode 2, PWM audio output directly drive small speakers 0.5W8 Europe and WT588D to be set to PWM output mode; 3, the pin VCC GND VREST CS CLK DO DI Download online output line interface; 4, RESET reset button (when the connection is interrupted or connection error, after the download is complete, you can click the button to reset); In Figure 5, the test button K1, K2, K3, K4, K5, K6, K7, K8, K9 and K10 correspond to the I / O ports P00, P01, P02, P03, P04, P05, P06, P07, P10 and P11; Pin output, with program debugging microcontroller 7, BUSY busy tone indicator 8, power indicator 10, USB cable input slot, connect the computer through the USB cable to turn on the power provided by the USB. 11, the lock seat can be placed WT588D module, WT588D plug SPI-Flash (need to convert seat), place the end.
