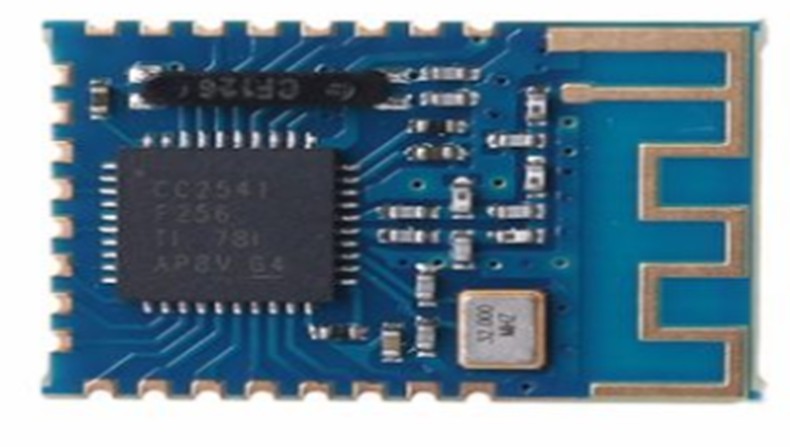

CC2541 Bluetooth 4.0 BLE (Master-slave) module
The TICC2541 chip is designed based on the Bluetooth 4.0 protocol standard. The working frequency band is 2.4 GHz, the modulation mode is GFSK, the transmission power is 0 db, and the transmission distance is 80 meters.
Product Features:
1: Micro XIN transparent transmission (supports AirSync protocol, micro XIN is applied to H5 or manufacturer server communication, including long packet data parsing and receiving)
2: Micro XIN control mode (motor speed control, LED light switch control)
3: APP transparent transmission (support Android, IOS data transparent transmission)
4: iBeacon mode (supports WeChat shake protocol and Apple iBeacon protocol)
5: Sensor mode (temperature, humidity and many other sensor data acquisition applications)
6: Host transparent transmission mode (data transmission between application modules, host and slave communication)
7: Host observer mode (application sensor, indoor positioning)
8: PWM mode (applicable to motor speed regulation, LED light level adjustment)
9: IO mode (applies to mobile phone control relay or LED is off)
10: Indoor room application (application to collect iBeacon data to achieve range positioning)
11: RTC mode
12: RTC alarm mode: RTC alarm time can be set to control IO port, support two alarm time settings
Size: 19.6*15MM
Technical specifications:
Type Specifications
Working voltage： 1.9 – 3.6V
Operating temperature： -40 - 85°C
Maximum transmit power： +8dbm
Antenna： PCB onboard antenna
Receiving sensitivity： -92dbm
Average current：
Wake mode： 90uA
Suspen mode： 14 uA
Deep Sleep mode：1uA
Factory default configuration:
Service UUID: FFE0
Feature UUID: FFE1
Serial port baud rate: 115200bps
Product application range:
1: bluetooth LED lighting
2: Motor adjustment and other products
3: Anti-lost alarm and other products
4: Sports Health Care
5: Small appliances
6: Automotive Electronics
