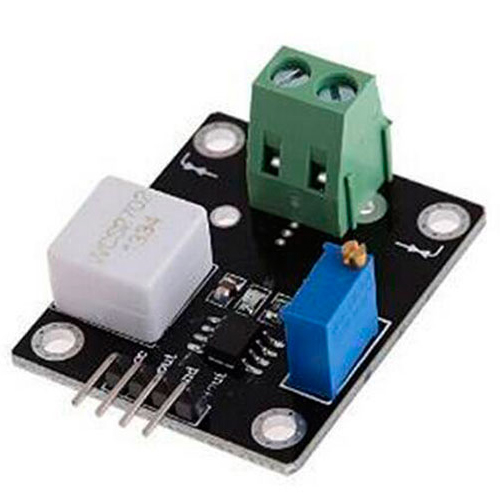

WCS2702 Current Detection Sensor Adjust 2A Short Circuit Overcurrent Protect Module

Features: First, dimensions: length 37mmX high 16.5mm wide 31mmX Second, the main chip: LM393 operational amplifier, WCS2702 Third, the working voltage: DC 5V DC Fourth, characteristics: ????????????1, with a signal output instruction; ????????????2, the current detection range DC ± 2A AC: 1.4A; ????????????3, the current detection resolution of 1V / A; ????????????3, output over-current signal indication; ????????????4, the overcurrent signal set the critical point adjustable, set the resolution of 0.1A; ????????????5, with mounting holes, easy firmware installation; ????????????6, sampling current conversion analog signal output, can be accessed ADC, TTL level signal output, microcontroller SCM can be accessed. ? Applications: Intelligent automotive motor over-current detection, stalling protection current detection, short circuit protection testing, demonstration teaching experiments and other occasions, to facilitate secondary development; The maximum detection current selection: ± 2A / ± 5A / ± 7.5A / ± 20A / ± 30A / ± 35A / ± 60A / ± 75A / ± 100A / ± 150A / ± 200A (We are the most, you need to contact Want.) ? Package Included: ?1 x overcurrent detection sensor
