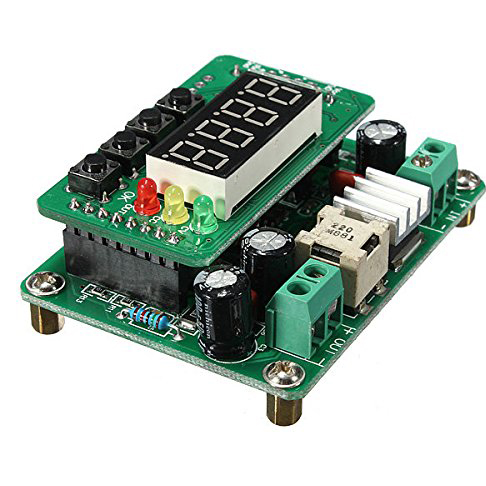

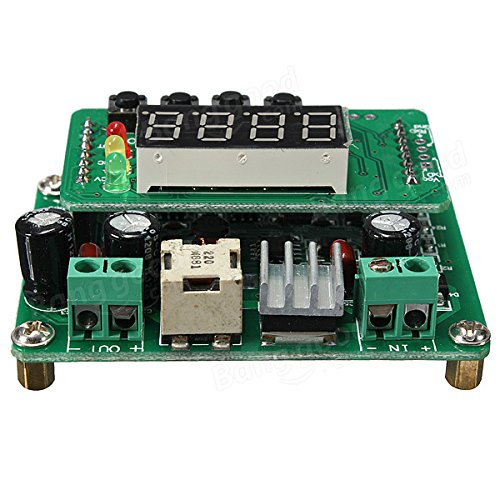

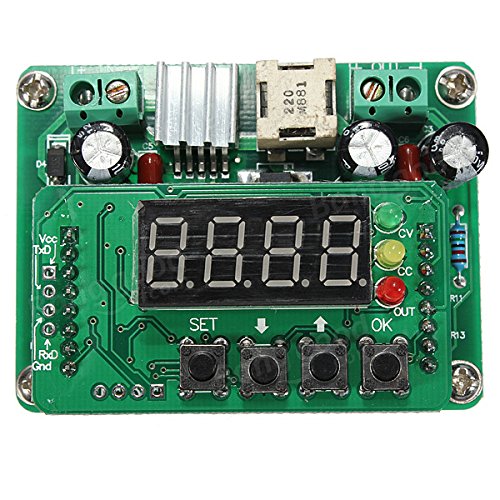

B3603 DC LED Digital Controlled Step Down Driver Power Module

product description
Input Voltage: 6V ~ 40V Output Voltage: 0V ~ 36V Output Current: 0A ~ 3A Conversion Efficiency: Up to 92% Output Ripple: = 50mV Operating Temperature: -40 ° C ~ + 85 ° C Operating Frequency: 150KHz Short Circuit Protection: Constant 0.01V Current Regulation / Display Resolution: 0.001A Minimum Display Resolution: 0.001W Minimum Display Resolution: 0.001AH Input Reverse Protection: No, if Needed Install Diode Connection Mode: Termination Size: 66 x 50 x 21mm Weight: 44g Usage: The module has two usages: one is simple to use and the other is full-featured. Simple to use: 1. Correctly connect the input and output, and ensure that the input voltage within the required range. Do not reverse, or it will burn out.
