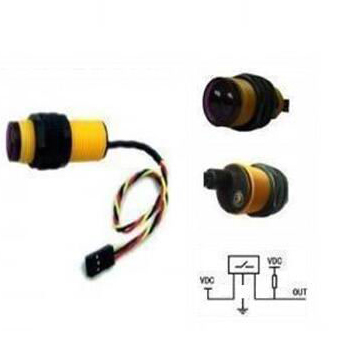

1, the output current DC/SCR/relay Control output: 100 ma / 5 v power supply 2, the DC current < 25 ma 3, response time < 2 ms 4, pointing Angle: 15 ° or less, adjustable range 3-50 cm 5, test object: transparent or opacities : 6, working environment temperature 25 °C ~ + 55 °C 7, standard test object: sunlight below 10000 lx incandescent lamp below 3000 lx 8, shell material: plastic Electrical properties: U: 5 VDC I: 100 ma Sn: 3-50 cm Size: 17 mm diameter: The sensor length: 45 mm Lead length: 45 cm
