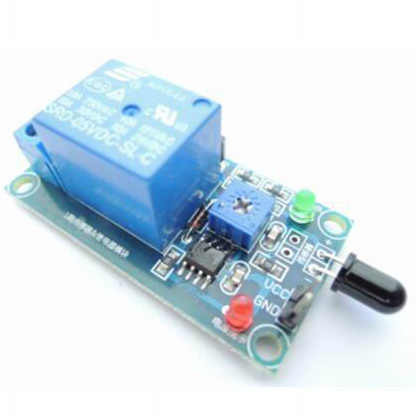

The flame sensor module relay module combo; flame; fire detection; fire alarm

The module features: 1, can detect the flame or wavelength from 760 nm to 1100 nm range flame light, a distance of 80cm, the bigger the flame, the faster the testing distance 2, the detection angle of 60 degrees, is particularly sensitive to the flame spectroscopy 3, the sensitivity is adjustable 4, the comparator output directly trigger relay 5, size: 50x26mm, thickness 19mm 6, the output with the blue wire holder, convenient connection Electrical parameters: Power supply voltage: 12VDC Current: more than 150mA Load: 250V 10A 30V 10A AC or DC
