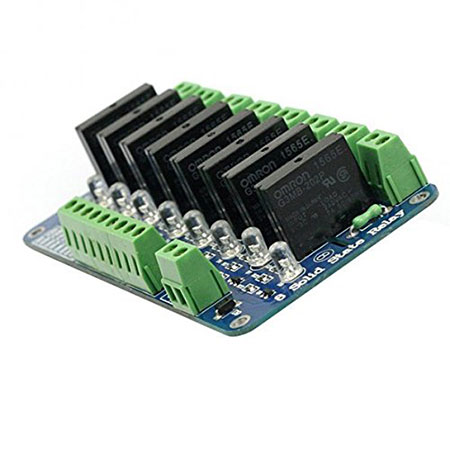

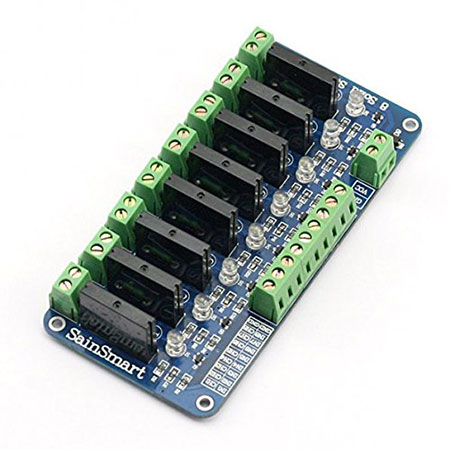

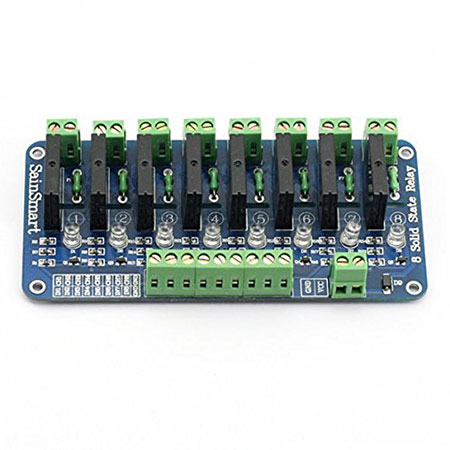

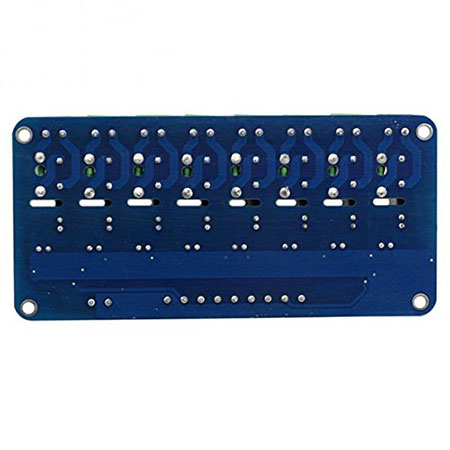

8-Channel 5V Solid State Relay Module Board
  • 8-Channel 5V Solid State Relay Module Board
  • 8-Channel 5V Solid State Relay Module Board
  • 8-Channel 5V Solid State Relay Module Board
  • 8-Channel 5V Solid State Relay Module Board
  • 8-Channel 5V Solid State Relay Module Board

8-Channel 5V Solid State Relay Module Board

  • SKU: 6032
  • Shipping Weight: 70g
445:viewed
US$10.00
  (10000 Pieces available)
  • Description
  • Customer Reviews
  • Payment & Shipping
Size:8-CH
Specifications SSR Output (each channel) Load voltage range: 75 to 264VAC (50/60Hz). Load current: 0. 1 to 2 AMP. Power supply 5VDC / 160mA (all channel ON). Input control signal voltage: 0V - 0. 5V Low stage (SSR is OFF) 0. 5V - 2. 5V (unknown state). 2. 5V - 20V High state (SSR is ON). SSR Spec. Manufacturer: OMRON Part number: G3MB-202P, 5V version. Isolation: Phototriac. Zero cross: Yes. Rated output load: 2A at 100 to 240VAC. (50/60Hz). Load type: General purpose.
