TFT 2.8 Inch Touch Shield For Raspberry PI B+

Product description

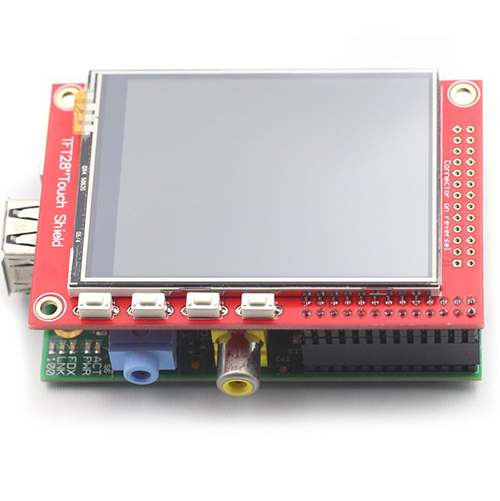

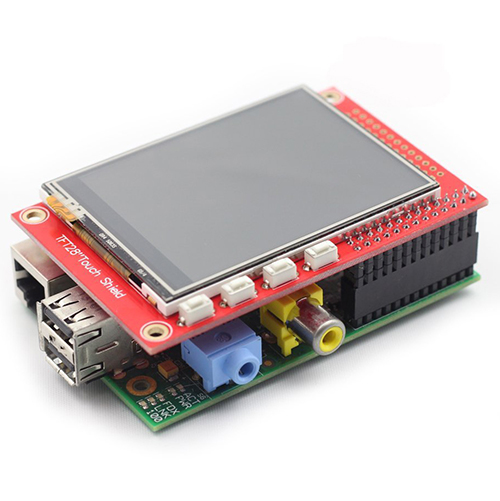

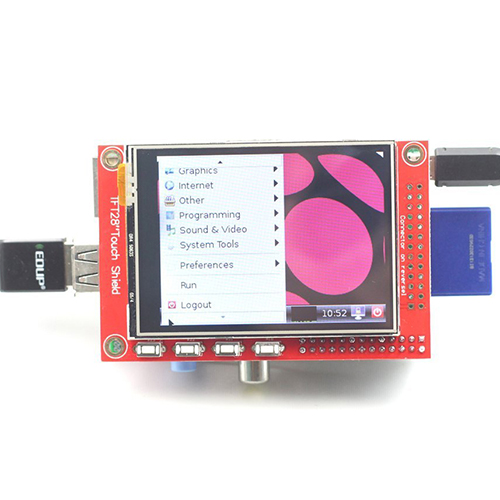

It features a 2.8" display with 320x240 16-bit color pixels and a resistive touch overlay. The plate uses the high speed SPI interface on the Pi and can use the mini display as a console, X window port, displaying images or video etc. Best of all it plugs right in on top!

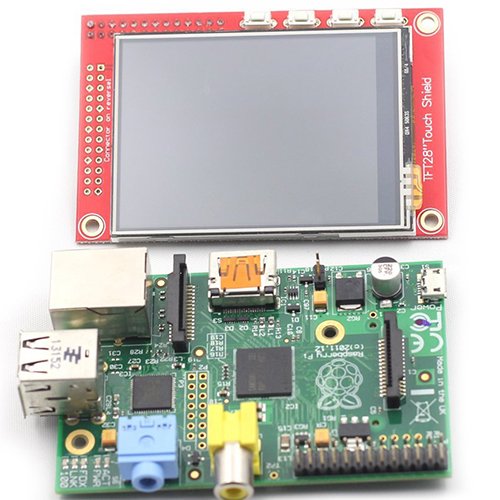

It is designed to fit nicely onto the Pi Model A or B. But it is NOT compatible with Model B+.

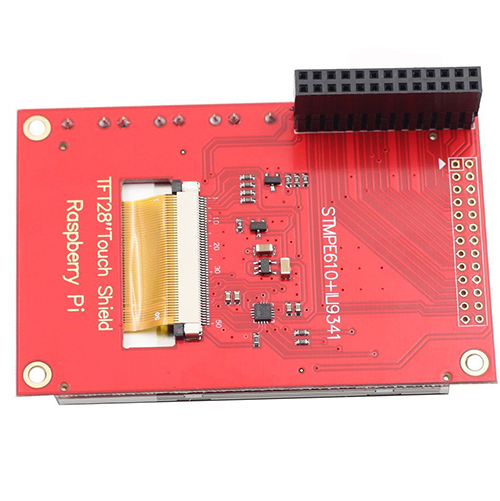

Uses the hardware SPI pins (SCK, MOSI, MISO, CE0, CE1) as well as GPIO #25 and #24. All other GPIO are unused. Since we had a tiny bit of space, there's 4 spots for optional slim tactile switches wired to four GPIOs, that you can use if you want to make a basic user interface. For example, you can use one as a power on/off button.
Package Dimensions 4.9 x 3.4 x 2.3 inches
Item Weight 2.88 ounces

Note: The Raspberry Pi is NOT included
