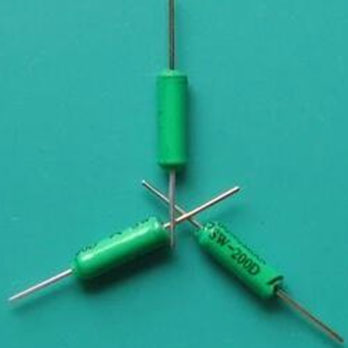

SW-200D Tilt Switch

product manual:
1, the switch is made of metal, the mercury switch and the electrical characteristics are similar, but the risk of mercury switch and environmental issues similar to shake the same monomer with the same characteristics of the conductive, assembly and use more convenient and safe;
2, Operating characteristics: the switch is at rest, as shown in the figure (ON), when the level is below 15 degrees, the switch is in the on state; when it is less than 15 degrees, the switch is in the off state; When the external oscillation oscillates to external force or set the conduction angle range, the electrical characteristics of the conductive pins will be transient or continuous conduction.
3. To restore the electrical characteristics of the OFF state (OFF), the switch to the environment must be static and the (OFF) open end set below the desired angle;
4, switch all the materials are environmentally friendly materials, in line with ROHS requirements;
5, when the switch is lower than the horizontal angle of 15 degrees, the trigger is difficult to shake conduction;
6, low-current circuit trigger switch does not apply to the power switch;
7, the switch is sealed package, dust and water.
This switch is Lacoste, better than the single bead conduction effect
Electrical parameters:
Maximum operating voltage (Vmax): 12V Maximum operating current (Imax): 2mA
Open resistance: more than 10M resistance: less than 5 euros
Ambient temperature: less than 100 degrees Life expectancy: 50 million times
