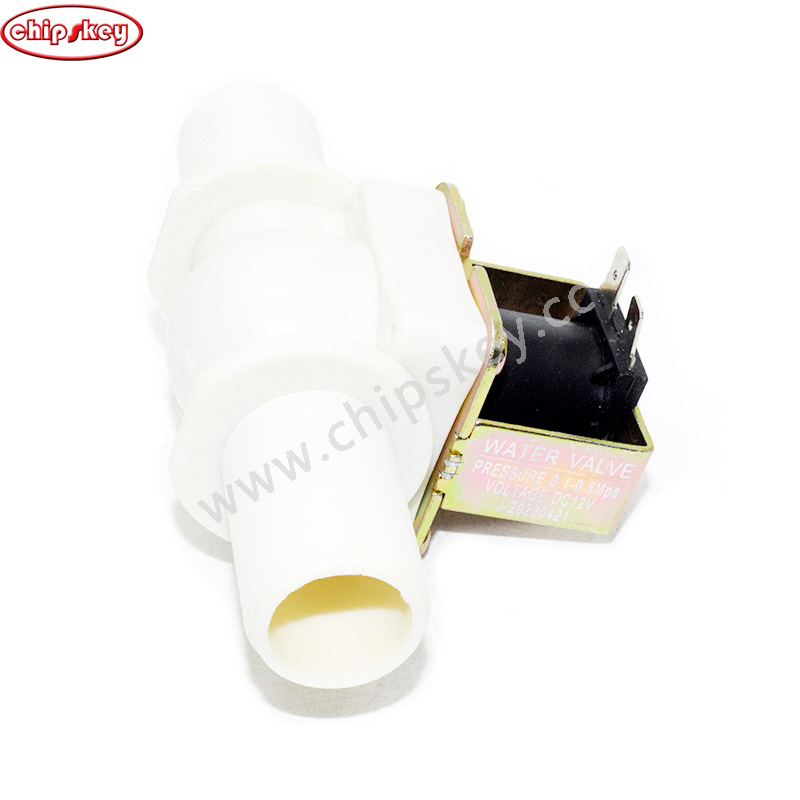

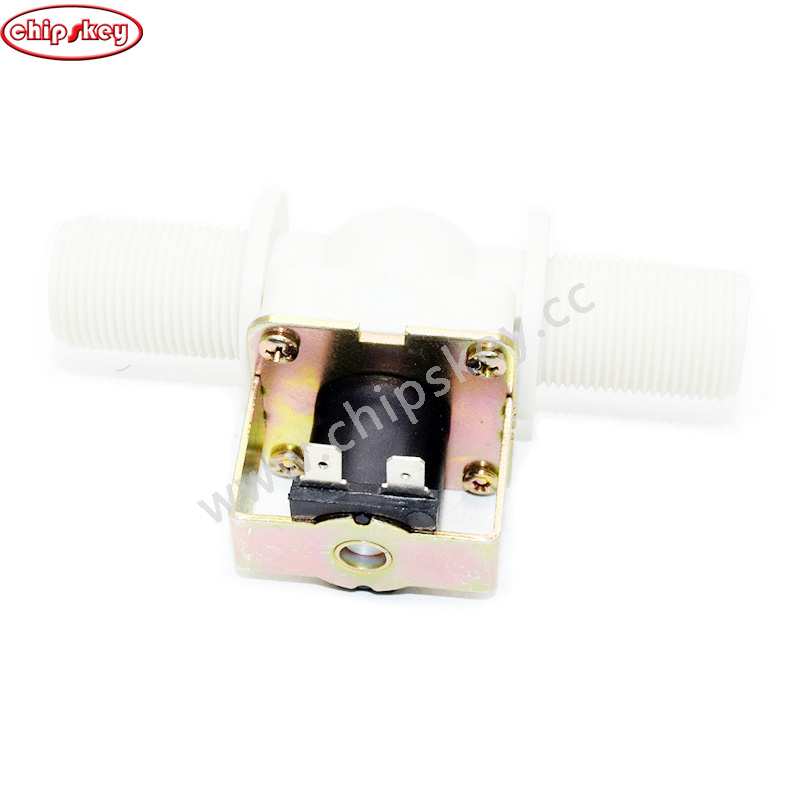

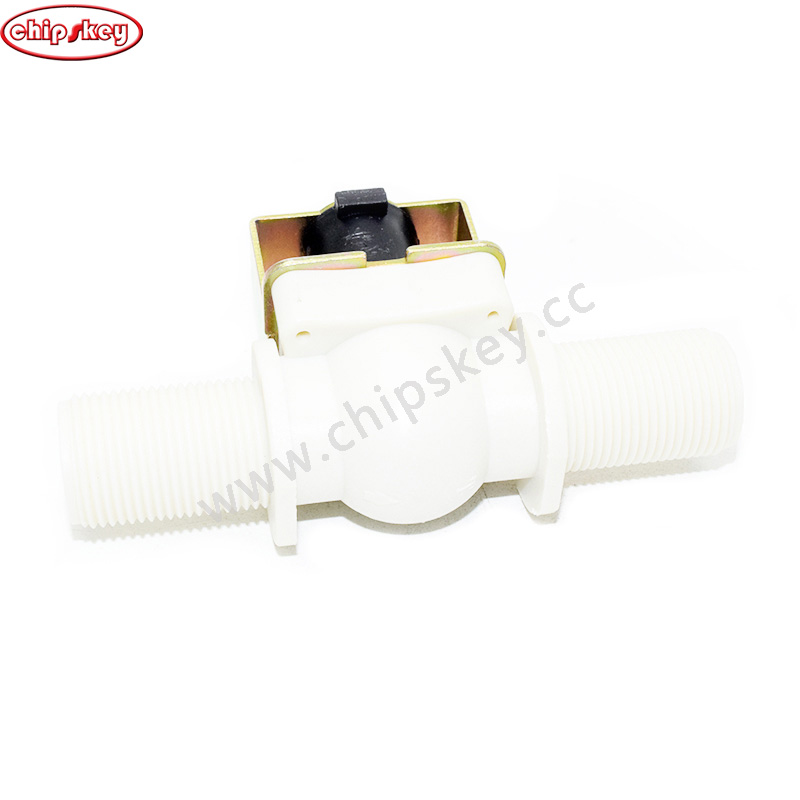

G3/4 DC12V NC Electromagnetic Water Valve

G3 / 4 DC12V digital electromagnetic valve
use:
For automatic control system: automatic solar water, infrared sensors, sanitary ware, shower, drinking fountains, water control, automatic water dispenser, hot water boiler, campus card equipment, switch control, inlet and outlet 180 ° angle, called http straight or linear valve!
?Common solenoid valve parameters are as follows:
1, normally closed (that is, water)
2, inlet valve (working pressure, the general water 0.02-0.8MPa or booster pump, the use of pressure will be much larger!) Drain valve (working pressure, 0-0.02MPa commonly used in bottled water switch water!)
3. Installation angle: parallel (180 degrees)
4. Interface: 8 oclock diameter of 32mm inches!
5, voltage: DC12V, DC24V, AC220!
?
Normally closed solenoid valve drain:
First, the product is stable, durable, safe, reliable, high sensitivity, quality assurance, beautiful appearance.
Second, the main technical indicators:
1, the use of the environment does not exceed the altitude of 2500 meters; atmospheric pressure 86 ~ 106KPa;
2, ambient temperature + 1 ℃ ~ + 45 ℃; water temperature is 0 ℃ ~ +100 ℃; storage and transportation temperature -30 ℃ ~ +60 ℃; 3, protection class IP00; relative humidity ≤ 95%
