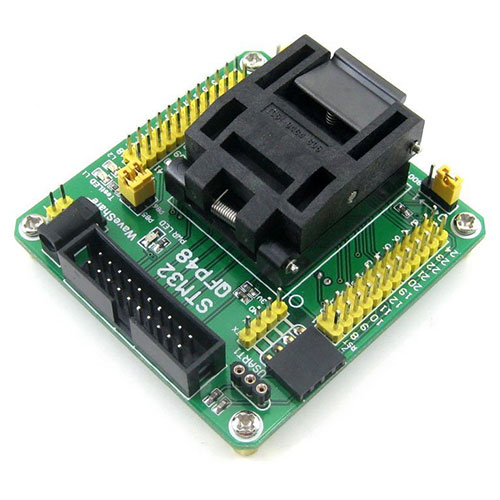

STM32-QFP48 STM32 STM32F STM32F1 STM32L LQFP48 QFP48 Program Programmer Programming JTAG SWD Port Yamaichi IC Test & Burn-in IC51-0484-806 Socket Board Adapter

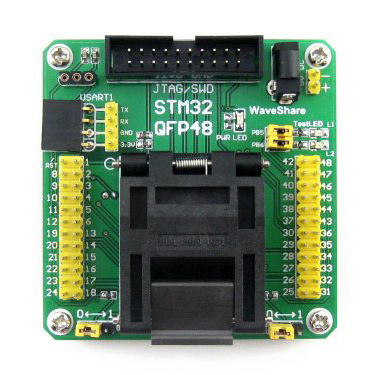

product description feature 20-pin JTAG / SWD port and / or 4-pin USART1 interface for programming / testing The external crystal can be connected to the system clock via the on-board socket Onboard 32.768K crystal oscillator Two LEDs for testing are connected to the I / O pins by jumpers All MCU pins are accessible through the expansion connector Pin header: 2.54mm (100mil) Supported devices STM32 Microcontrollers in a Pin-Compatible QFP48 (0.5mm Pitch) Package: STM32F10xC series (STM32F103CB, STM32F103C8, etc.) STM32L15xC series (STM32L151C6, STM32L152CB, etc.) Outline and size Unit: mm Part No. Pitch Pin Applicable IC Size (REF.) Dimensions (REF.) A x BC x DEFG x H IC51-0484-806 0.5 48 7 × 7 9 × 9 8.2 - 29 × 32 photo JTAG / SWD port For programming / debugging / testing Compatible with ST-LINK / J-LINK / ULINK2 / STX-RLINK USART1 port Support ISP and / or serial debugging LED indicator Make a quick test Pin connected to the MCU pin Clearly marked car mark Easy to test and further expand Boot mode configuration Configure BOOT0 and BOOT1 with jumpers 5V power input DC jack or 2-pin plug External crystal socket Insert the crystal into the holes on both sides, leaving the middle hole alone product information Product Size 7.1 x 3.9 x 3.5
