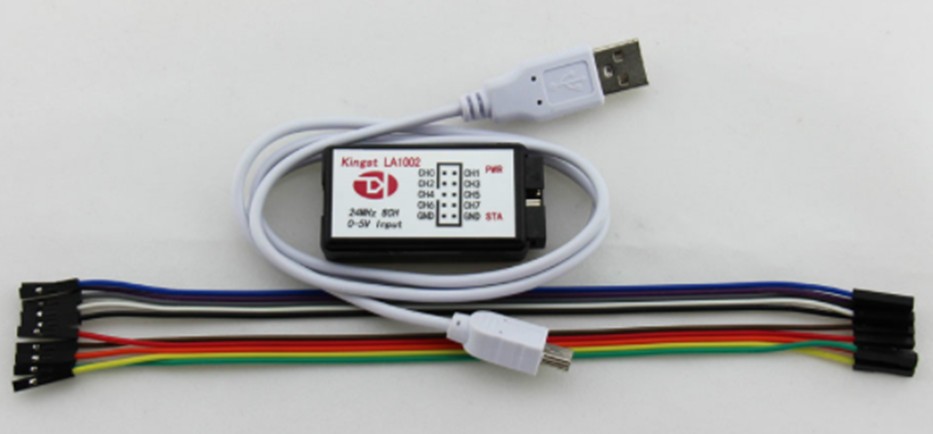

LA1002 USB Logic Analyzer Single Chip Microcomputer ARM FPGA Debugging Tool 24M Sampling 8 Channels
Parameter:
1. 8 channels input;
2. Logical light indication: a small light indicate CHO electrical level;
3. Input feature: 5PF, 100K Ohm;
4. USB power supply;
5. Sampling rate can be set as below:
24MHz, 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;
6. Data upload real time,the max of depth of collection is 10T, far from practical need;
7. Support WIN7(32&64), 2K, XP, LINUX
