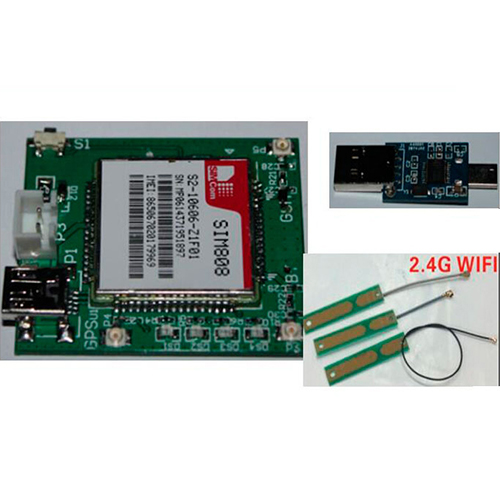

It features ultralow power consumption in sleep mode and is integrated with the Li-Ion battery charging circuitry for long standby times and easy-to-use rechargeable Li-Ion battery projects. It has 22 tracking and 66 acquisition receivers, high GPS receiver sensitivity. In addition, it supports A-GPS for indoor positioning.
It comes with a mini GPS and GSM antenna but does not include a lithium battery. Quad-band 850/900/1800/1900MHz GPRS multi-slot class12 connection: maximum. 85.6kbps (downstream / upstream) GPRS mobile station B class Controlled by AT commands (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT commands) Support lithium-ion battery charge control Support real-time clock Supply voltage range 3.4V ~ 4.4V Integrated GPS / CNSS and supports A-GPS Supports 3.0V to 5.0V logic level Low power consumption, 1mA in sleep mode Supports GPS NMEA protocol Compact size 27mm x 46mm x 7mm Standard SIM Card Receiver channels: 22 tracking / 66 acquisition Coarse / Acquisition code: GPS L1 Tracking sensitivity: -165dBm Cold start time: 30s (typ.) Hot start time: 1s (typ.) Warm start time: 28s (typ.) Horizontal position accuracy: <2.5m CEP Power consumption - Acquisition: 42mA Power consumption - Continuous tracking: 24mA Update rate: 5Hz
