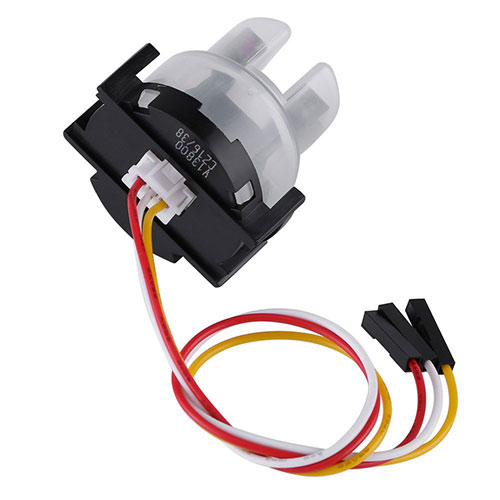

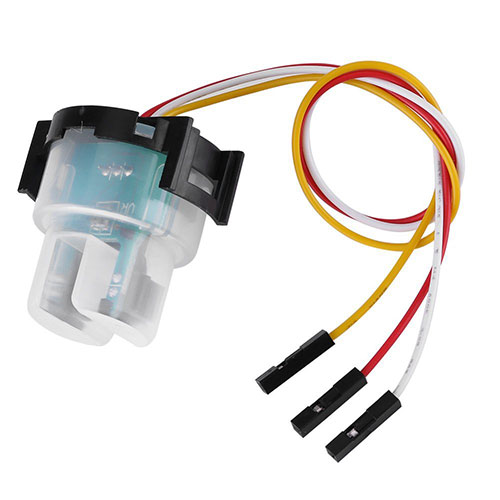

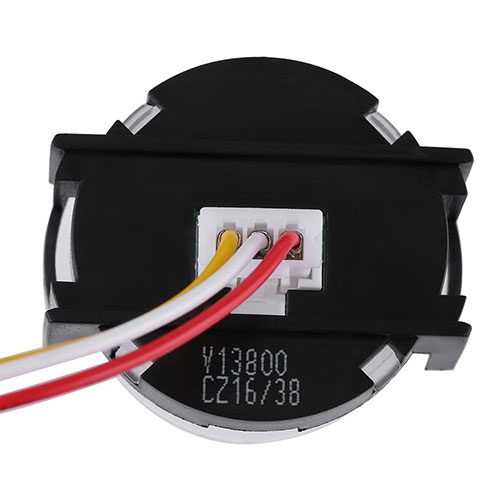

Sensor Turbidity TSW-20

Product features
Adopts optics principles to synthetically estimate turbidity through the liquid light transmittance rate and scattering rate, high accuracy
The liquid turbidity sensor is generally used in a dynamic environment because of the gradual amount of haze value

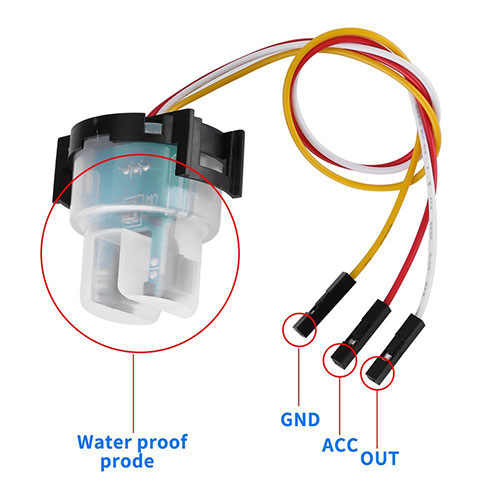

Waterproof probe ensures long service life, widely used in washing machines, dishwashers and other equipment for turbidity testing
Can also be used on electronic design, graduate design, electronic competition experiments and other applications
Pay attention that when you use the sensor to detect in a system, you need a peripheral circuit
Product description
Specifications:
Working Voltage: DC5V
Working Current: 30mA(MAX)
Response Time: <500mS
Insulation Resistance: 100MΩ(Min)
Operating Temperature: -30℃~80℃
Store Temperature:﹣10℃~80℃

Package Includes:
1×Turbidity Sensor

Product details
Product Dimensions: 0.8 x 0.2 inches ; 0.32 ounces
