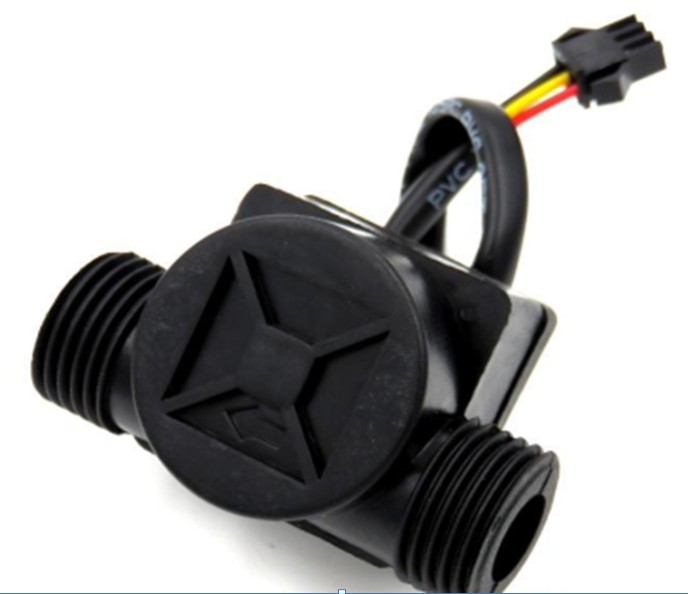

FS200A G1/2 Water Flow Sensor
Description:
FS200A G1/2 Inch 1.75Mpa Water Flow Sensor Flow Meter 1-30L/min 15mA
Specification:
Model:FS200A
Test range:1~30L/min(m³/h)
Connect way:60*34*34mm, G1/2 outside diameter
instantaneous flow pulse characteristics:F=[8Q]±10%, F means instantaneous pulse value(Hz),Q means instant flow
Max. Working current:15mA
Insulativity:insulation resistance≥100MΩ
Electric strength:AC 500V, 50Hz
Use voltage:DC 5V-24V
Fit media:water
Material:mixtures
Mechanical properties:magnetic material
Working pressure:1.75MPa
Protection grade:high
linearity:0.01(%F.S.)
Output signal:moder
Hysteresis:0.01(%F.S.)
Features:
This is a small zise product that easy to install.
Made of good material, the product is precise and durable, no power consumption.
Suitable for gas water heater, electric water heater, washer, wall-hanging stove, electromagnetic water heater, intelligent IC water meter,cooling system, circulatory system, heating equipment,etc.
Three lines: red is positive, black is negative, yellow is pulse signal.
