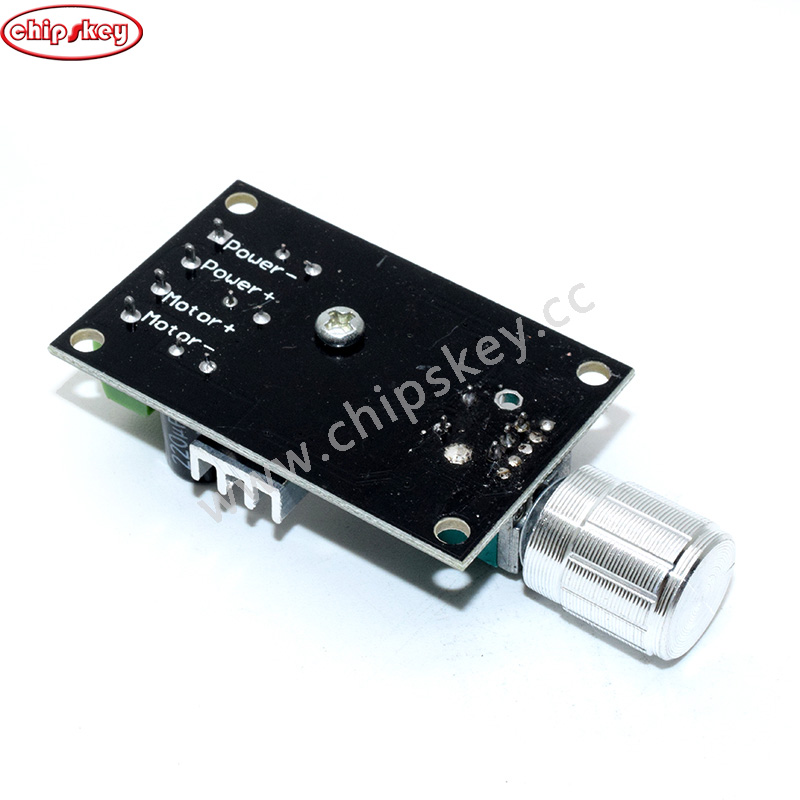

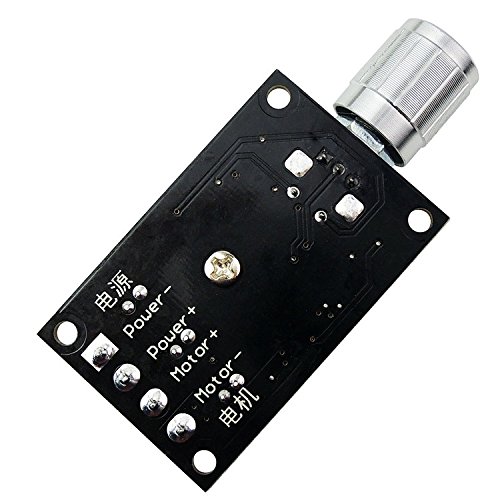

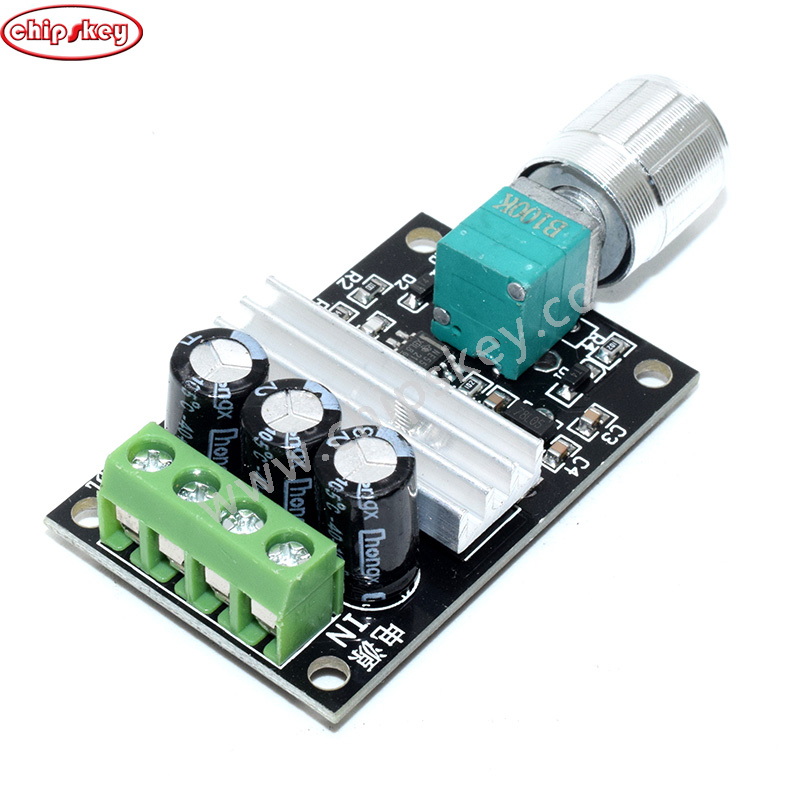

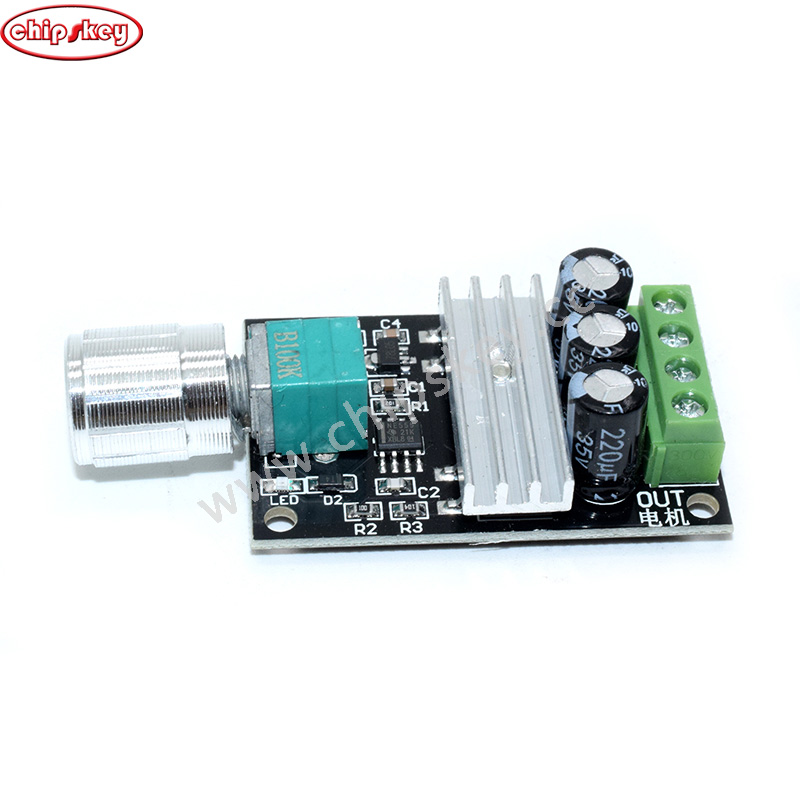

PWM DC 6V 12V 24V 28V 3A Motor Speed Control Switch Controller

Product description

Input supply voltage: 6V-28VDC
The maximum output power: 80W
The maximum continuous output current :3A
Item size: 1.3*2*0.4 inches; Net Weight:085 ounces
Duty Cycle adjustable: 5%-100%??potentiometer with switch function.
Potentiometer with switch function.

Operating instruction:

Before you attempting to wire the controller, make sure power is off.
WARNING: DO NOT REVERSE POSTIVE AND NEGATIVE POWER LOADS.THIS WILL DAMAGE THE CONTROLLER.
1. Connect wires refer to the "wiring diagram" (NO.5 picture).
2. Turn on the power, and adjust the potentiometer.
3. The LED indicates the power up and the speed of motor.

Package Including:

1 x DC Motor Speed Controller
