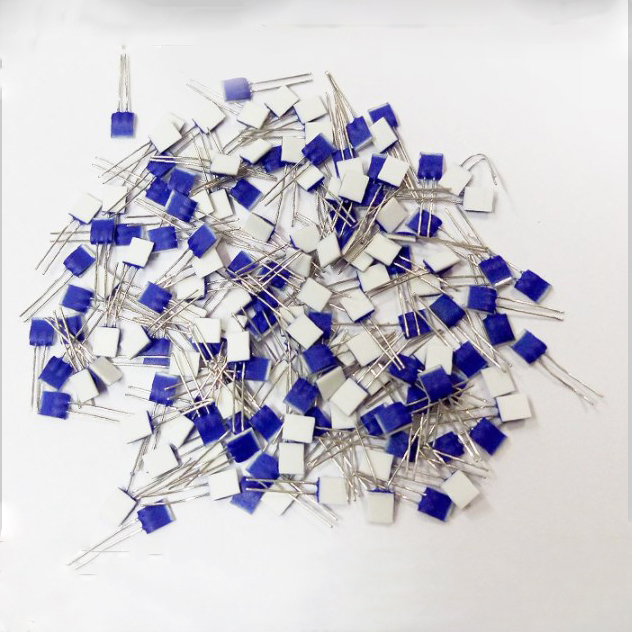

PT100 thin film resistor

Precautions for application of CRZ thin film elements:



1. When directly using components or making temperature sensors to measure temperature, avoid exceeding the temperature measurement range. Although it will not be damaged in a short time, it will also affect the product life and accuracy.



2. When assembling the temperature sensor with CRZ element, pay attention to the change of stress during the curing process when using high-temperature curing epoxy adhesive for potting, otherwise the element may be damaged (generally open circuit); During the filling process with magnesium oxide or aluminum oxide, the element shall not directly contact the sharp inner surface of the protective tube, otherwise, the ceramic edge of the element may be damaged during the vibration process, resulting in open circuit damage of the element.



3. When manufacturing the temperature sensor, the high insulation performance of the potting material must be ensured, otherwise the electrical insulation performance of the product will be reduced, and the test data of the components will be affected, which will generally lead to the low test resistance value.







Platinum thin film platinum thermistor chip is the product of the development of an epoch-making temperature sensor. Adopt advanced high-tech methods, such as laser spraying, micrograph and lithography. And the resistance value is finely adjusted by digital trimming, thus providing accurate resistance value.



1: Technical performance description



*The product performance complies with relevant standards of iec751-1995 and jis1604,



*Temperature coefficient R100 / R0 = 1.3851



*After strict quality inspection, the accurate resistance value of each element at 0 ℃ shall be noted.



*Thin film platinum thermistor element is made of ceramic and platinum. It can maintain excellent stability at high temperature and is suitable for use at - 50 ℃ ~ 4OO ℃



*The platinum thin film is sprayed on the ceramic surface by laser, so the thin film platinum thermal resistance element has good anti vibration and anti impact performance.



*The surface of the film is covered with ceramic, so the element can withstand high voltage and has good insulation.



*In addition to providing PT100 Ω, platinum thermistor chips also have PT500 and PT1000 Ω elements.



*Accuracy: in addition to class A and class B, there are more accurate class 1 / 3B for users to choose.



2: CRZ series product specifications



*Temperature range: - 50 ℃ - 4OO ℃



*Accuracy: Class A, class B, and more accurate class 1 / 3B.



*Specified current (MA) 2mA (maximum)



*Lead material: palladium alloy.



*Dimension (width * length * thickness) mm: 2.0x2.3x1.1
