PPM Encoder V2.0 for Pixhawk PPZ Mk MWC Megapirate APM Flight Controller

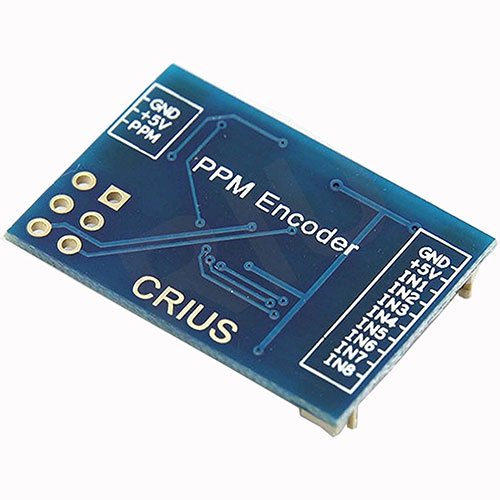

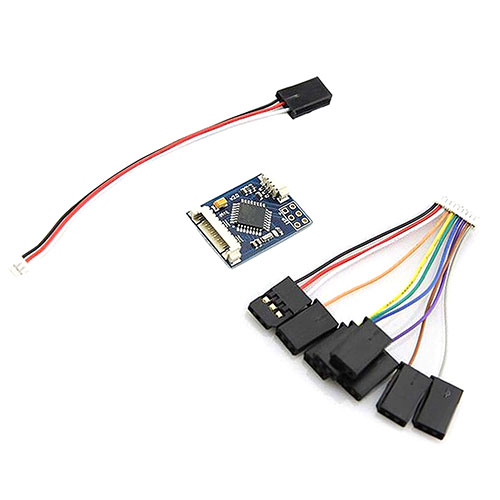

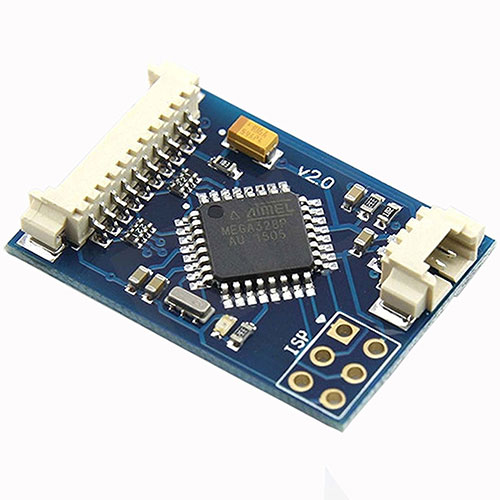

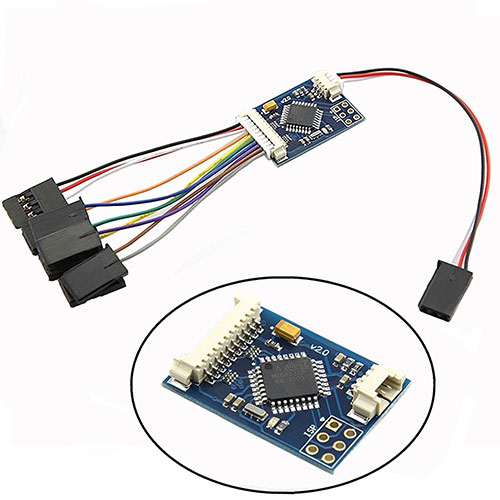

product description The PPM encoder plugs into the PWM servo output port of any R / C receiver and encodes it into a PPM pulse suitable for many autopilots such as Pixhawk. Modifications to the R / C receiver are not necessary. The entire project is based on the ATMEL ATMEGA328p AVR processor and all timing is done within the interrupt, so accuracy and stability are optimized. PPM encoder design is based on Paperazzi PPM encoder. Important: The firmware is preconfigured to read 8 channels. If you want to change the PPM encoder settings to reverse the PPM signal and change the failsafe predefined value, you need the AVR ISP programmer to reprogram it. Board jumpers are not soldered by default. In this case, FC-powered boards Size (mm): 28 x 19 x 5 Weight (g): 9 (including all wires) Package contents (as shown) PPM encoder x 1 10Pin input cable 60mm x1 4Pin output cable 100mm x1
