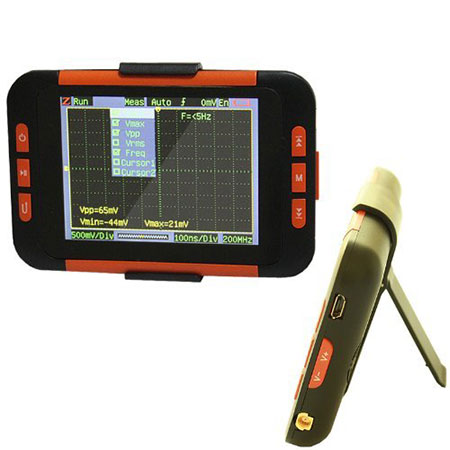

Pocket Oscilloscope QDSO Bandwidth 40M Sampling Rate 200M with 3.5-inch Display(OS-QDSO)
  • Pocket Oscilloscope QDSO Bandwidth 40M Sampling Rate 200M with 3.5-inch Display(OS-QDSO)
  • Pocket Oscilloscope QDSO Bandwidth 40M Sampling Rate 200M with 3.5-inch Display(OS-QDSO)
  • Pocket Oscilloscope QDSO Bandwidth 40M Sampling Rate 200M with 3.5-inch Display(OS-QDSO)

Pocket Oscilloscope QDSO Bandwidth 40M Sampling Rate 200M with 3.5-inch Display(OS-QDSO)

  • SKU: 7084
  • Shipping Weight: 123g
959:viewed
US$93.00
  (10000 Pieces available)
Hot Products
  • Description
  • Customer Reviews
  • Payment & Shipping

Specification: Input: Max sample:200MS/s Channels:1 Bandwidth:40MHz analog bandwidth Vertical resolution:8bit Gain range:10mV - 5V;-5V ~ + 5V(probe X1)(10mV 10V,1,2,5 step) 100mV 50V;-50V ~ + 50V(probe X10) DC accuracy:+/-3% Impedance:1M 25pF Coupling:DC Display Mode:Y - T Input Protection:Diode,50Vpk Timebase Timebase range:1ns 100ms (1,2,5 step) Buffer Size:4K Trigger Mode:Auto Normal and Signal Type:NoRising edgeFalling edge and edge Autoset:Yes level:Yes Math measurements:Vmin/Vmax/Vpp/Vrms and Frequence Cursor:Max 2 Physical Display:3.5inch 24Bit true color TFT 320*240 Battery:1000mA lithium battery(About 2 hours of continuous work) Dimensions:11cm x 8cm x 1.9cm
