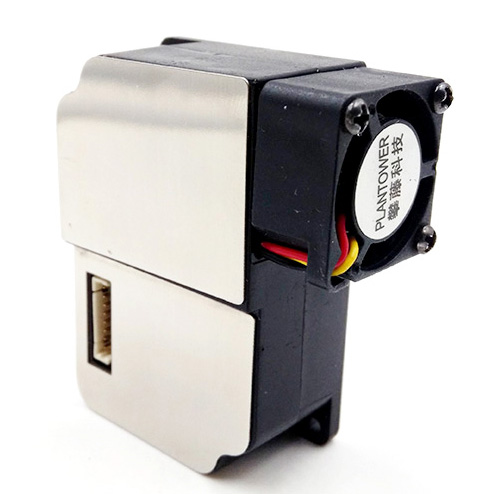

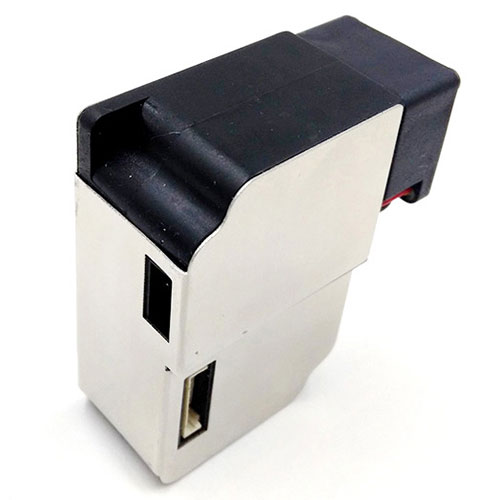

PMS3003 pm2.5 Sensor

Item

Range

Unit

Measure range

0.3~1.0;1.0~2.5;2.5~10

μm

counting efficiency

50%@0.3um 98%@>=0.5 um

Quasi volume

0.1

L

Respond time

≤10

s

DC power supply

5

V

Max working current

120

mA

Standby current

≤200

μA

Data interface level

L <0.8   H >2.7

V

Working Temp range

 -20~+50

℃

Working humidity range

0~99%

mean free error time

≥3

year

Maximum dimension

65×42×23

mm
