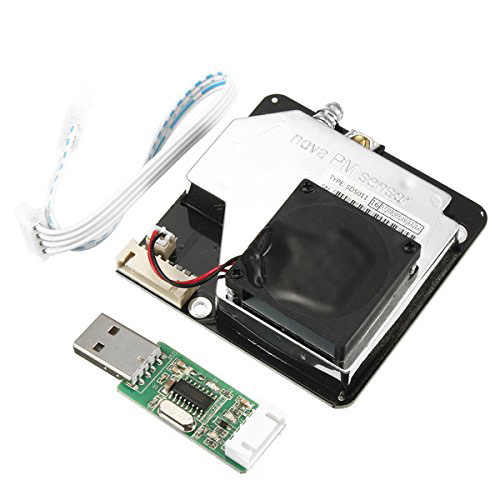

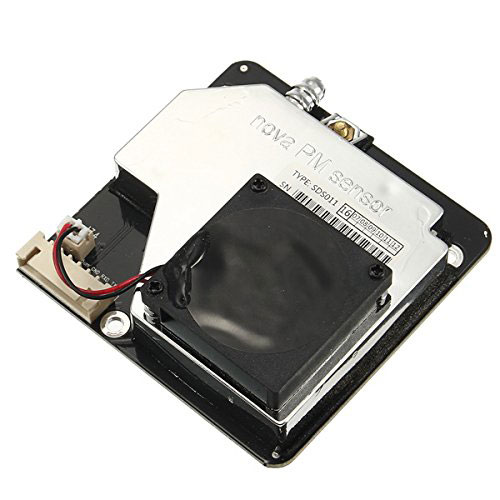

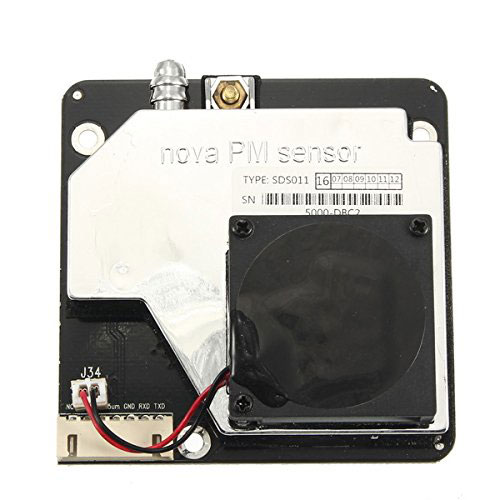

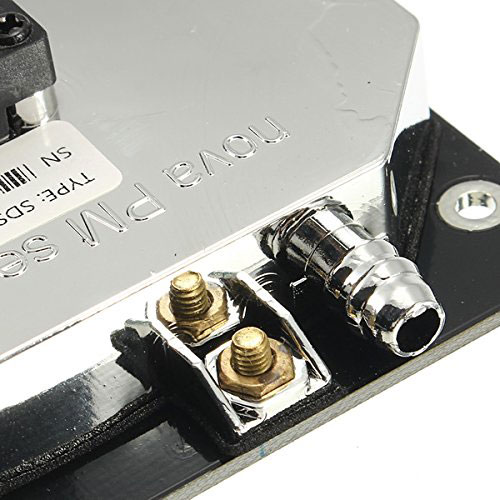

Nova Fitness SDS011

product description
Overview:

Using scattering principle, the particles can be obtained in the air 0.3 ~ 10um concentration.

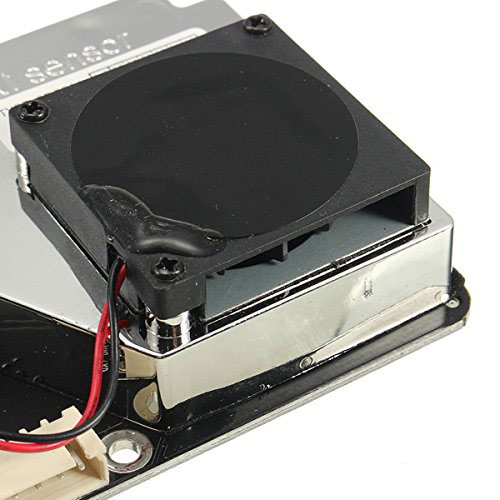

With digital output, built-in fan stable and reliable.

Features:

1, accurate and reliable: stable detection, consistency;
2. Fast response: Response time changes less than 10 seconds;
3.Easy to integrate: UART output (or IO output can be customized), the fan built-in;
4 high resolution: a resolution of 0.3ug / m3.

Application:

PM2.5 test
Purifier
Air exchanger
filtering system

working principle:

Using scattering principle:
Light scattering can be caused when particles pass through the detection area.
Scattered light is converted into electrical signals, which are amplified and processed.
As the signal waveform and particle size have a certain relationship, you can get the number of particles and diameter analysis.

Technical Parameters:
?
ug / m33 Supply voltage 5V4 Maximum operating current 100mA5 Sleep current 2mA6 Operating temperature range -20-50 ℃ 7 Response time 1s8 Serial data output frequency 1 /
Diameter resolution of less than 0.3um10 relative error of 10% 11 product size 71x70x23mm

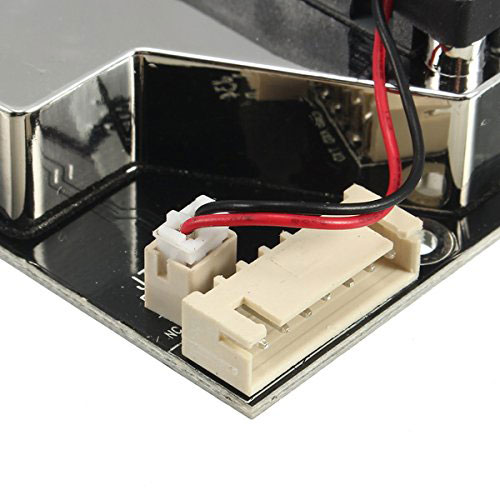

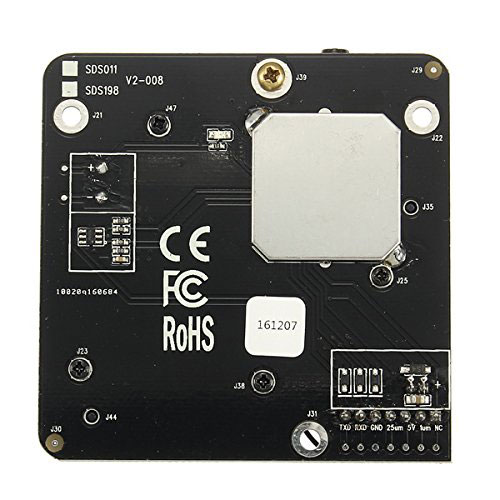

Interface Specifications:

PinNameexplain1CTLControl pin, reserved 21um> 0.3 micron particle concentration, PWM output 35V5V Power input 425um> 2.5 micron particle concentration, PWM output 5GNDGND6R Serial port receiver RX7 port transmission TXPS: Interface spacing 2.54mm

Protocol:

Serial communication protocol:
008N1. (Rate is
00, data bit is 8, parity is none, stop bit is 1)
Serial Report Communication Cycle: 1 + 0.5 seconds
Data frame (10 bytes): Header + Order + Data (6 bytes) + Checksum + Message Trailer
