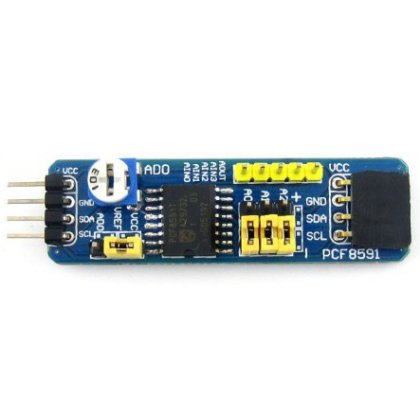

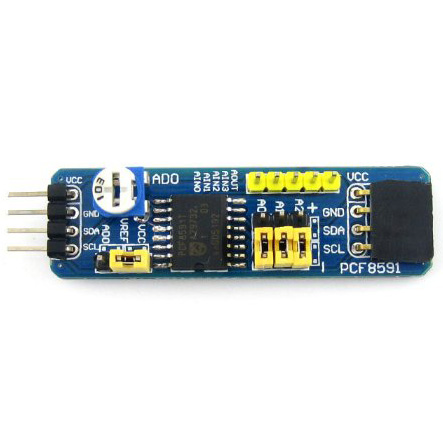

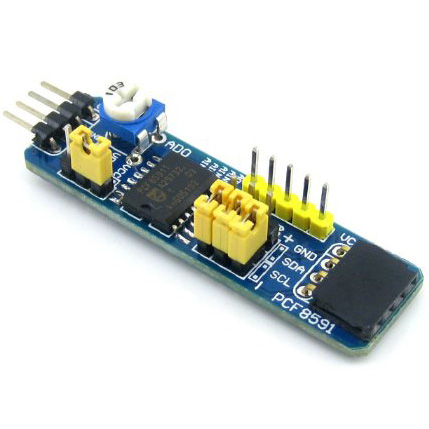

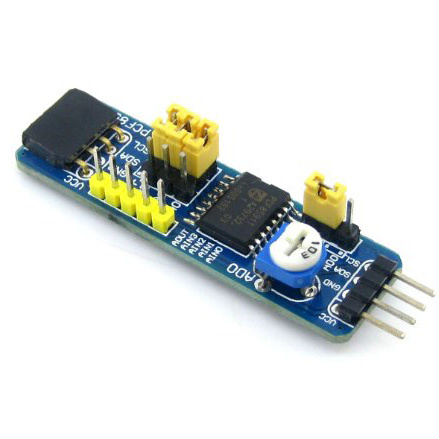

PCF8591 AD DA Board PCF8591T A/D D/A Converter Evaluation Development Module Kit

product description A / D converter and digital to analog converter module with I2C interface, on-board PCF8591, 8-bit resolution, 4-channel AD, 1-channel DA, voltage output Overview The PCF8591 AD DA board features an 8-bit A / D converter and D / A converter PCF8591 with 4 analog inputs, 1 analog output, and 1 serial I2C bus interface. The PCF8591 AD DA board has an I2C pin on one side and the I2C connector on the other. Therefore, it is more flexible to connect the board to your development system. The board also supports I2C cascading, allowing simultaneous use of multiple modules connected to the I2C bus by connecting pinheaders and connectors. feature PCF8591, I2C pinheader, I2C connector, adjustable resistor, A / D conversion analog input, D / A conversion analog output, address pin jumper photo Package included PCF8591 AD DA board 1 Product size 7.1 x 3.9 x 3.5 inches Product weight 0.64 ounces
