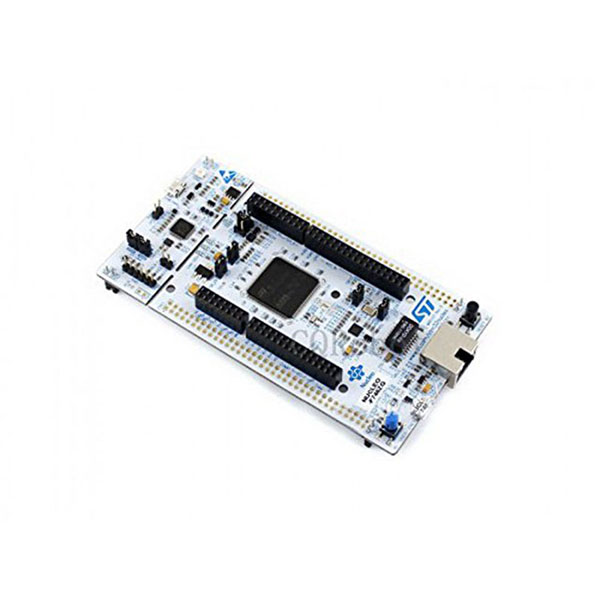

NUCLEO-F746ZG
product description The STM32 Nucleo-144 board provides users with an affordable and flexible way to experiment with new concepts and prototypes with the STM32 microcontroller, choosing from a combination of performance, power and features. The ST Zio connector is an extension of the Arduino Uno that gives access to more peripherals and ST morpho headers, making it easy to extend the capabilities of the Nucleo open development platform with a variety of specialized masks. The STM32 Nucleo-144 circuit board does not require any separate probes because it integrates the ST-LINK / V2-1 debugger / programmer with the STM32 synthesis software HAL library and various software package examples as well as direct access to the ARM mbed Online resources. feature: STM32 microcontroller in LQFP144 package Two types of extension resources: The ST Zio connectors include: Arduino Uno Revision 3 support (A0 to A5, D0 to D15) and multiple peripherals (A6 to A8, D16 to D72) ST morpho extended pin header package for full access to all STM32 I / O On-Board ST-LINK / V2-1 Debugger / Programmer with SWD Connector Introduced in Q2 Select Mode Switch This kit acts as stand-alone ST-LINK / V2-1 USB re-enumeration function. USB supports three different interfaces: virtual COM port, mass storage, debug port Flexible board power supply: ST-LINK / V2-1 USB VBUS 5V External power supply: 3.3 V and 7 - 12 V on ST Zio or ST morpho connectors, 5 V on ST morpho connectors USB OTG or full speed device with Micro-AB connector (depending on STM32 support)
