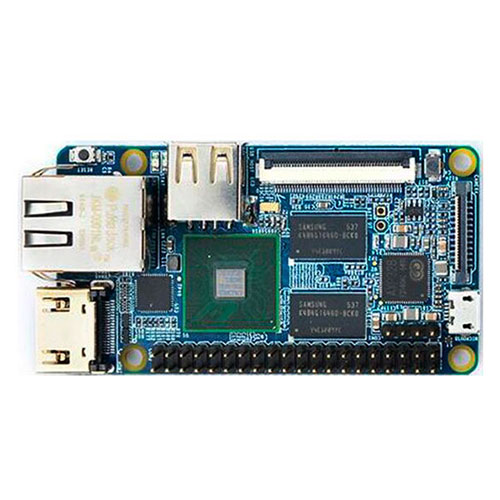

NanoPi 2 Fire, Quad-Core A9 & GigE

NanoPi 2 Fire, Quad-Core A9 & GigE

  • SKU: 26256
689:viewed
US$32.20
  (10000 Pieces available)
  • Description
  • Customer Reviews
  • Payment & Shipping
characteristic
CPU: S5P4418, 1.4GHz
RAM: 1GB DDR3
Connectivity: Gbps Ethernet port
PMU Power Management: AXP228, software shutdown, sleep and wake-up functions
USB 2.0 Type A x 1
Debug serial port / UART0 x 1
microSD slot x 1
microUSB x 1: For data transfer and power input
LCD Interface: 0.5mm pitch SMT FPC Block for full color LCD (RGB: 8-8-8)
HDMI: HDMI 1.4A, Type-A, 1080P60
DVP camera interface: 0.5mm pitch FPC socket. It includes 8 bits of ITU-R BT 601/656, I2C and IO
GPIO: 2.54mm Pitch 40pin, Compatible with Raspberry Pi GPIO. It includes UART, SPI, I2C, PWM, IO and so on
Buttons: power button x 1, reset button x 1
LED: Power Indicator x 1, System LED x 1
PCB size: 75 x 40mm
Power: DC 5V / 2A
Operating System: Android, Debian
