Module overview

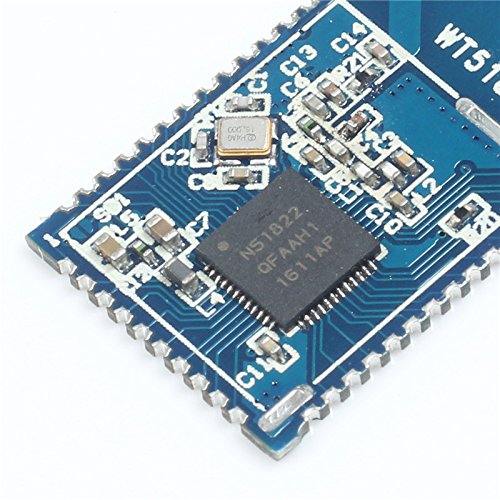

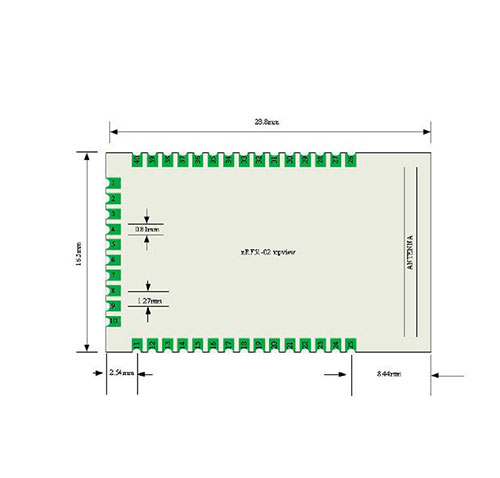

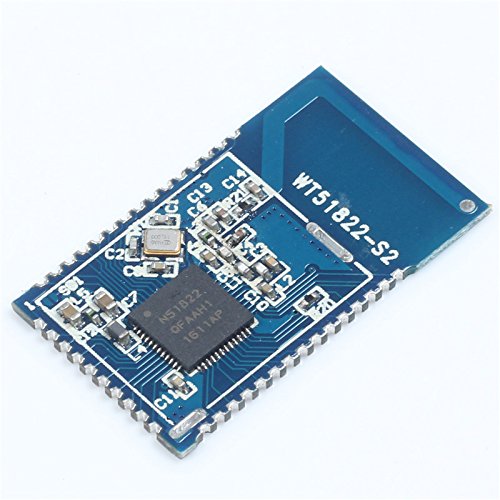

nRF51822-02 module is a transparent data transmission module, the use of Bluetooth BLE, Nordic companies have integrated the SOC chip nRF51822-QAFF, internal integration of the underlying low-power Bluetooth 4.0 standard protocol, the module interface is a standard UART interface, Built-in interrupt output prompt, when pairing Bluetooth module to receive data transmission, it will output a high warning signal to the external device, and the module configuration of the hardware enable pin, no data transfer, can be set to high by the enable pin To disable serial data transfer, thereby reducing system power consumption. Module Features Bluetooth low-power single-mode chip BLE4.0; Integrated standard BLE4.0 protocol stack; Standard UART (TTL) interface for direct connection to an external MCU serial port or serial peripheral; Optional hardware serial port baud rate 9600 or 38400, the default is 9600; Interrupt output prompt; Hardware enable control Working distance: 0-20 meters, two; Power supply voltage: 3.3V Module comes with PCB antenna, you can also use an external antenna; Module size: 16.5 * 28.8mm. Module dimensions
